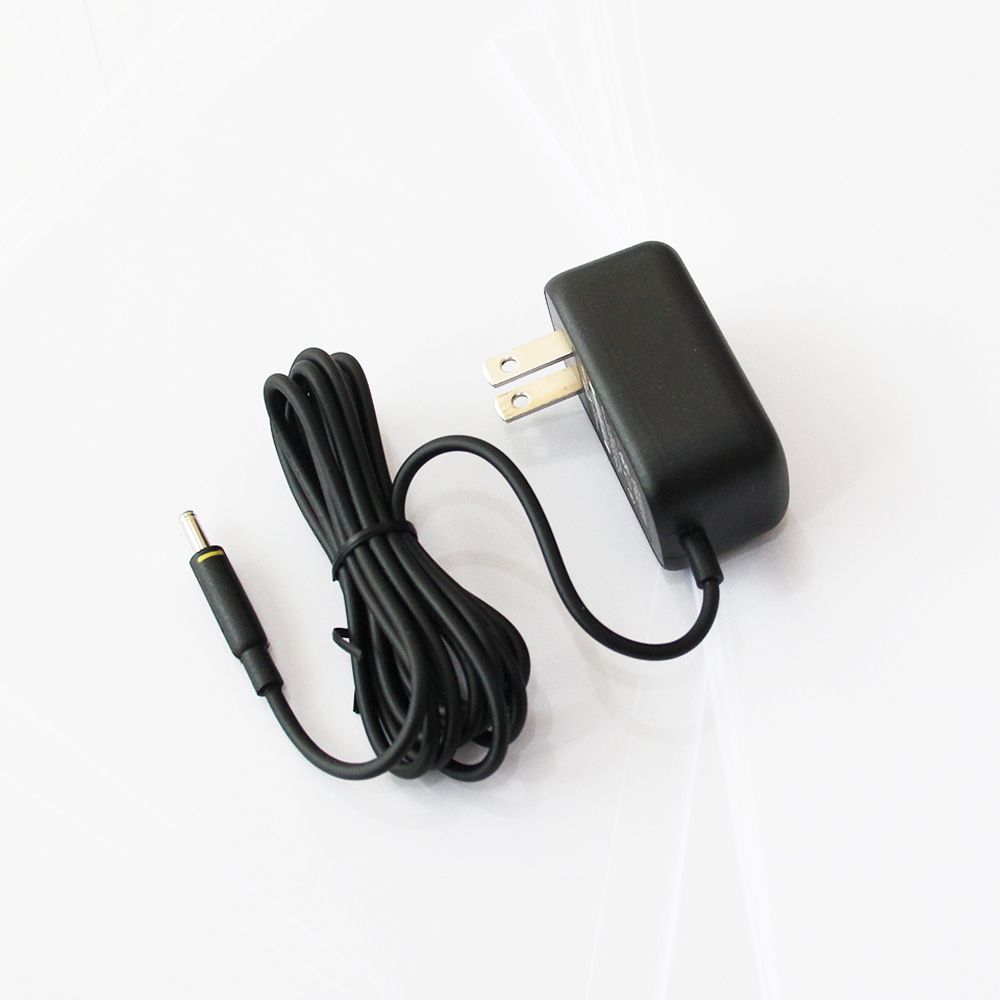

5V 1.5A Wall Mount Power Adapter

Sunshine manufactures high-quality 5V 1.5A Wall Mount AC DC Power Adapters. Sunshine has two Wall Mount AC DC Power Adapter factories in China and Vietnam to provide competitive 5V 1.5A Power Adapter in bulk for you.

Input: Universal 100-240Vac;50/60Hz
Input Under Voltage Protection
Output: 5V 1.5A,6.5W
AC Plug:US/EU Plug
100% tested by Laboratory Testing Equipment
Protection: SCP, OVP, OCP, OTP
Dimensions: 60(L)*27.5(H)*35(W)mm
Global Certifications: UL FCC CE GS RoHS etc
Availability:

Product Description

Product Type

5V 1.5A Wall Mount Power Adapter

Input

Input Voltage Range

100-240Vac

Frequency Range

47-63Hz

Input Current

0.5A Max

Output

Output Voltage

5.0V

Output Current

0-1.5A

Ripple & Noise

150mVp-p Max

Voltage Tolerance

4.75-5.25V

Line Regulation

±5%

Load Regulation

±5%

Energy Class

ENERGY STAR VI

Protection

Over load

2.25A Max

Over Voltage

7.5V Max

Short Circuit

Protect

Over Temperature


Input Under Voltage

Shutdown at approx 70-85 VAC
Restore at approx 75-88 VAC

Environmental

Operating Temperature

0℃-50℃

Operating Humidity

5%-95%

Operating Altitude

4000m

Safety Approvals

UL

UL62368-1

EMC

Conducted

FCC Part 15 Class B

Radiated

FCC Part 15 Class B

Common Mode Noise

Satisfied

ESD

Air discharge:+/- 15 KV min
Contact Discharge:+/- 8 KV min

Surge

1KV

Others

Hi-pot

3KV Acrms(10mA Max)

Insulation Resistance

500V DC(50MΩ Min)

Leakage Current

120Vac(0.25mA Max)

Dimensions

60(L)*27.5(H)*35(W)mm



Features of 5V 1.5A Wall Mount Power Adapter

● 5V 1.5A Wall Mount Power Adapter With High Efficiency

Sunshine Power 5v power adapter 5 volt 1.5 amp power adapter 5vdc 1.5amp ac dc power adaptor with fixed type EU US plug for optional. Reliability for DoE(VI) / EU ErP & CoC5 Compliance and are safety approved to IEC/EN/UL 62368-1 Safety standards. 5V DC 1.5A power supply for your electronic devices such as modems, clocks, printers, LED lights, security cameras, etc.


● Overload Protection with High Quality Wires

● Over-charge/discharge protection

● Overheating Protection with Smart Chip

● Anti-Interference Feature with better Isolation Materials

● Short-circuit protection

● Fully compatible with the original laptops

● Tested with strict quality control standards

More than 60 tests including high and low temperature cycle test, high and low temperature hot wash test, salt spray test, drop test, roller test, unplugging endurance test, fire test, lightning strike test, anti-static test, etc.


● Protection Requirements

No battery damage, anti-overheating, anti-surge, overload protection, anti-current, flame retardant material, anti-over-voltage, anti-short circuit


8 protection


● Application

We provide high quality, small, light and constant adapter use in communication equipment, such as tablet PC, LED displays, LED hard and soft light bars, mobile DVDs, EVD, ADSL, POS machines, multimedia set-top boxes, LCD monitors, small home appliances, battery charger, video phone, portable computer, satellite receiver, digital photo frame, computer peripherals, instruments, electronic game machine, hub, mobile communication equipment, bank data equipment, alarm equipment, medical equipment communication equipment, industrial appliances, security engineering, monitoring systems, and other fields.


Cutting-Edge, Accurate & Reliable Lab Testing

Lab in Sunshine is equipped with advanced and reliable electronic test equipment of all kinds of types, such as several sets of CHROMA series test equipment, CHROMA integrated test operating system, FLUKE test equipment, YOKOGAWA temperature tester, YOKOGAWA power meter, LECROY oscilloscopes, TESEQ lightning tester, X-Ray fluorescence spectrometer, liquid chromatography, EMC laboratory, TDR network cable analyzer, FLUKE network cable tester, plugging tester, tension tester, cable swing tester, steel ball drop tester, constant temperature test chamber, salt spray tester, light transmission meter, specific gravity tester, vibration test bench, etc. we guarantee that all our products gain a full range of export licenses, such as UL, CE, RoHS, CCC, PSE, etc.


Lab Testing Equipment


Sunshine is in accordance with ISO9001, TL9000-H, ISO27001, and ISO14001 international Quality Management System certification. From collecting customer requests for design, development, production, service…etc. We establish a standard quality assurance system for clear, reliable quality standard production techniques. We force to improve R&D technology, and productivity, at the meantime, we also implemented improvements and records for each production. Provide safe, secure, complete, and systematic production management.


Certification

Promise Customer High-Quality and 100% Safe Power Adapters

All power adapters from 5W to 90W branded Sunshine meet the request of relative safety certification, including switch power supply, USB charger, Ethernet power supply…etc. Promise customer safety and rights for our primary goal.


All adapters manufactured by the China factory and Vietnam factory of Sunshine comply with all relevant safety specifications required for sale in the country. And providing relative safety certificates for a client to pass the inspection authorities of the country of checking.


Sunshine provides ODM/OEM development projects that are in compliance with safety specification required by the important country. And we provide all relative information to customers for the application and access.


Certificates


Sunshine Two Factories in China and Vietnam

Sunshine Electronics has been working as a trustworthy 5V 1.5A Wall Mount Power Adapter manufacturer and supplier in China and outside China--Vietnam for almost 20 years. We can guarantee that 5V 1.5A Wall Mount Power Adapters are produced with high quality in China and Vietnam.


Through our modern manufacturing services for 5V 1.5A Wall Mount Power Adapters, we reduce your costs, ensure high-quality and 100% safe 5V 1.5A Wall Mount Power Adapters, speed up your Quick Charge to the market, and help you gain a competitive edge. With more than 1200 employees distributed in China and outside China--Vietnam, devotes themselves to serving our overseas customers, and providing them with more advantages and chances to occupy the  market. Owing to advanced R&D for 5V 1.5A Wall Mount Power Adapters, rigorous quality control for 5V 1.5A Wall Mount Power Adapters, consistent automated production lines for 5V 1.5A Wall Mount Power Adapters, flexible manufacturing system and dynamic dispatching in China and Vietnam, we have gained more reliability and credibility in this industry to obtain more market share and opportunities for our global customers building long-term stable cooperation and maintaining a strong friendship with them in Western Europe, North America, Australia, and Asia.


Wholesale 5V 1.5A Wall Mount Power Adapters

Our OEM 5V 1.5A Wall Mount Power Adapters are designed to provide great service for all our customers to ensure they help boost your business with 5V 1.5A Wall Mount Power Adapters. We could supply high-quality 5V 1.5A Wall Mount Power Adapters that are applicable in different approaches to give you flexibility and an advantage in the market.  Besides, the portable 5V 1.5A Wall Mount Power Adapters are brought to any place if you need 5V 1.5A Wall Mount Power Adapters. Last but not the least, our lighter 5V 1.5A Wall Mount Power Adapters could make your lives easier when you have to carry 5V 1.5A Wall Mount Power Adapters all the way.  Getting best 5V 1.5A Wall Mount Power Adapters wholesale gives you a great benefit that you can take advantage of in different applications.


Why Choose Sunshine Electronics 5V 1.5A Wall Mount Power Adapters?

Flexible Manufacturing System and Dynamic Dispatching from China and outside China--Vietnam

Sunshine Electronics has become one of the most well-trusted Quick Charge manufacturers and suppliers in both China and outside China--in Vietnam. We are available to provide two production lines for 5V 1.5A Wall Mount Power Adapters in China and Vietnam at the same time, which means not only we could supply in bulk to meet your high-volume requirements, but also you could decide whether to dispatch your 5V 1.5A Wall Mount Power Adapters from China or Vietnam. The most important factor is that 5V 1.5A Wall Mount Power Adapters produced in China and Vietnam are all of high quality and 100% safe, and the specifications of 5V 1.5A Wall Mount Power Adapters in China and Vietnam are all the same.


Reliable Experimental Validation and Product Verification

Our professional Quick Charge manufacturing processes are streamlined, standardized, and rigorous to guarantee that we can always provide high-quality and 100% safe 5V 1.5A Wall Mount Power Adapters to all our customers. We adopt machines with highly Validated and Recognized test equipment brands in our laboratories and production workshop, such as FLUKE, Chroma, YOKOGAWA, LECROY, TESEQ, and GwinSTEK which stand for the highest and strictest standards with strong recognition in this industry of 5V 1.5A Wall Mount Power Adapters. At first, in terms of materials of 5V 1.5A Wall Mount Power Adapters, they should conform to the standards of RoHS, Reach, California 45 Act, and Red Phosphorus free. Then, all 5V 1.5A Wall Mount Power Adapters will follow a series of verification, such as EMC testing, high voltage insulation testing, earth loop impedance testing, lightning strike 6KV testing, and high and low-temperature testing. At last, before dispatching and packaging, all 5V 1.5A Wall Mount Power Adapters must pass another series of product verification, such as UL &CUL, FCC, DOE, CE, and NRCan.


Package Design of 5V 1.5A Wall Mount Power Adapters from Concept to Commercialization

Our expert team of designers who are talented in the field of 5V 1.5A Wall Mount Power Adapters handles the packaging and design solutions for 5V 1.5A Wall Mount Power Adapters from the beginning to the end, catering to any business needs. Combining the product design of 5V 1.5A Wall Mount Power Adapters, they are responsible for creating the perfect appearance design for your 5V 1.5A Wall Mount Power Adapters, along with matching labeling services of 5V 1.5A Wall Mount Power Adapters, and packaging of 5V 1.5A Wall Mount Power Adapters.


Warehousing, Logistics, and Inventory Solutions of 5V 1.5A Wall Mount Power Adapters

We are skilled in providing assistance in inventory management of 5V 1.5A Wall Mount Power Adapters through the use of our order system of 5V 1.5A Wall Mount Power Adapters and delivery options of 5V 1.5A Wall Mount Power Adapters. We are also good at managing the internal inventory to make sure that we have available stock of 5V 1.5A Wall Mount Power Adapters for faster delivery to our customers who are willing to use our 5V 1.5A Wall Mount Power Adapters. We can promise that we will solve your urgent need for 5V 1.5A Wall Mount Power Adapters as soon as possible to ascertain to leave a great impression on our packing services.


Full After-Sales Services

We believe in walking the journey with you which is why we deliver after-sales services designed to give you a hand whenever you are stuck and we are there till the last second of your 5V 1.5A Wall Mount Power Adapters.


Customer-Based 5V 1.5A Wall Mount Power Adapter

Our 5V 1.5A Wall Mount Power Adapters show custom options for you, such as the color of 5V 1.5A Wall Mount Power Adapters, the shape of 5V 1.5A Wall Mount Power Adapters, the size of 5V 1.5A Wall Mount Power Adapters, the labeling service of 5V 1.5A Wall Mount Power Adapters, and the package of 5V 1.5A Wall Mount Power Adapters on the surface of 5V 1.5A Wall Mount Power Adapters. But if you can’t find what you need for 5V 1.5A Wall Mount Power Adapters or you already have specific requirements for 5V 1.5A Wall Mount Power Adapters, no need to worry! We accept custom orders of5V 1.5A Wall Mount Power Adapters according to your ideas. Contact us, let us know what you need for 5V 1.5A Wall Mount Power Adapters, and we’ll do our best to create the best 5V 1.5A Wall Mount Power Adapters for your business!


Why 5V 1.5A Wall Mount Power Adapters are the Perfect Charges for You

Using 5V 1.5A Wall Mount Power Adapters can have multiple benefits not only for you selling 5V 1.5A Wall Mount Power Adapters but for your customers who prefer to use 5V 1.5A Wall Mount Power Adapters to improve the speed of charging their devices as well. 5V 1.5A Wall Mount Power Adapters contain the capability of charging electronic products at a faster rate without getting a higher temperature which makes us feel safe when choosing 5V 1.5A Wall Mount Power Adapters as our first choice. Not even to say that smaller Quick Charge could bring us convenience in our daily lives. We could travel everywhere in the world without considering bringing lots of charging devices as 5V 1.5A Wall Mount Power Adapters could charge multiple devices at the same time. It is a trend for younger to use 5V 1.5A Wall Mount Power Adapters.


Boost Your Brand with 5V 1.5A Wall Mount Power Adapter Design

Adding extra value to your 5V 1.5A Wall Mount Power Adapters by choosing a suitable 5V 1.5A Wall Mount Power Adapter design is also a key element to boost your brand in promoting 5V 1.5A Wall Mount Power Adapters. Fashionable, technical, and practical shapes for 5V 1.5A Wall Mount Power Adapters or packages for 5V 1.5A Wall Mount Power Adapters could increase customers’ desire to try your 5V 1.5A Wall Mount Power Adapters. By creating a specialized label for 5V 1.5A Wall Mount Power Adapters or a design of 5V 1.5A Wall Mount Power Adapters, it is easier to create a better and more lasting impression on your target market for selling 5V 1.5A Wall Mount Power Adapters.


We Offer Labeling Services for 5V 1.5A Wall Mount Power Adapters

After completing the production of your 5V 1.5A Wall Mount Power Adapters, our selection of labels as well as packages for 5V 1.5A Wall Mount Power Adapters are designed to cater to your special wants if your need to add your trademarks on the surface of 5V 1.5A Wall Mount Power Adapters. We offer different designs for 5V 1.5A Wall Mount Power Adapters and types of packages for 5V 1.5A Wall Mount Power Adapters that can drastically enhance the way your 5V 1.5A Wall Mount Power Adapters are consumed. Custom labeling services can also be requested to complement your unique needs for 5V 1.5A Wall Mount Power Adapters. Contact us now!


Free Samples

Sunshine Electronics targets at supplying the best customer experience in the whole cooperation process of 5V 1.5A Wall Mount Power Adapters. We also offer free samples for 5V 1.5A Wall Mount Power Adapters to all clients who are willing to have a try on our high-quality 5V 1.5A Wall Mount Power Adapters. After getting your free samples of 5V 1.5A Wall Mount Power Adapters, you can check and examine our 5V 1.5A Wall Mount Power Adapters if our 5V 1.5A Wall Mount Power Adapters meet your requirements. We undoubtedly possess the confidence that our 5V 1.5A Wall Mount Power Adapters are of premium quality and you will not regret.


FAQ

Can I use a 5V 1.5 A charger with a 5V 1A device?

Yes, it is safe to charge a device with a charger that has more current capacity than needed. Since the voltage is held constant (5V), the only factor that determines the current draw is the load (another term for resistance) the device places on the charger.

What is a 5V 1A plug?

They switch mode power supplies which means the output is regulated to 5V (no more 14V outputs!). These have a standard USB 'A' connector for the output so you can power your Arduino, Raspberry Pi, etc. through a USB cable. Any device that uses a USB cable for charging or power can be powered with this supply.

What does 5V 1.5 A mean?

The switch is safe to say spending 1.5Ampers when playing and charging. meaning you can use a 5V charger with any amps to charge it, but if you want to charge and play make sure the charger has more than 1.5Ampers.

Which is better 5V 1A or 5V 2A?

5V 2A is the most common smartphone charger these days. It yields a great improvement over 5V 1A chargers. However, the charging speed is not doubled. Despite having the same battery capacity for both the Honor 9 Lite and ASUS ZenFone 4, the charging speed differs significantly even when the same charger is used.

Can I use 5V 1.5 A for 5V 2A?

Assuming the wall adapter is rated at “5V 2A” and the device is rated at “5V 1.5A”, then — yes — this is perfectly OK. Why? Voltage (measured in Volts) is the electrical “pressure” or “force” — both adapter and device need to be the same.
