1.Introduction

In the fast-paced world of electronics, efficiency, size, and performance are paramount. While traditional linear power supplies have their place, Switch-Mode Power Supplies (SMPS) have become the undisputed workhorses powering everything from your smartphone charger to complex industrial machinery and data center servers. But how do these compact powerhouses actually work their magic? Let's peel back the layers and understand an SMPS block-by-block, revealing the engineering brilliance behind their dominance.

2.Why SMPS Reigns Supreme: Beyond the Linear Alternative?

Before diving into the blocks, it's crucial to understand why SMPS technology is so pervasive:

High Efficiency (70-95%+): Unlike linear regulators that dissipate excess voltage as heat, SMPS rapidly switches transistors between fully ON (low loss) and fully OFF (minimal loss) states. This minimizes wasted energy, reduces heat sinks, and lowers operating costs.

Compact Size & Light Weight: High switching frequencies (tens of kHz to MHz) allow the use of dramatically smaller transformers, inductors, and capacitors compared to the bulky 50/60Hz components needed for linear supplies with equivalent power.

Wide Input Voltage Range: Many SMPS designs can efficiently handle a broad range of input voltages (e.g., 90VAC-264VAC), making them ideal for global applications without bulky tap-switching transformers.

Flexible Output Voltages: SMPS can easily generate output voltages higher or lower than the input voltage, a feat difficult or inefficient for linear supplies.

High Power Density: The combination of efficiency and small components allows SMPS to deliver significant power from a very small footprint.

3.The Core Concept: Switching vs. Dissipating

The fundamental difference between SMPS and linear supplies lies in power regulation:

Linear: Acts like a "smart resistor" in series with the load. It continuously adjusts its resistance to drop the excess input voltage, dissipating it as heat. Simple but inefficient, especially with large voltage differences.

SMPS: Acts like a "high-speed switch and storage manager." It chops the input DC (or rectified AC) into high-frequency pulses. The average value of these pulses determines the output voltage. By rapidly switching and using magnetic components (inductors, transformers) to store and transfer energy in controlled bursts, very little power is lost as heat during the conversion process.

4.The SMPS Block Diagram: Your Roadmap

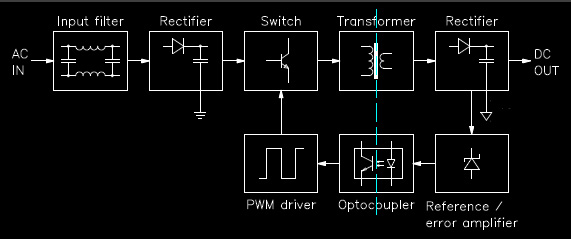

Imagine an SMPS as a series of specialized processing stages. Here's the canonical block diagram and a detailed breakdown of each stage:

Block 1: EMI Filter - The First Line of Defense

Function: To prevent two types of electrical "noise pollution":

Ingress: Blocking high-frequency noise from the mains power line from entering and disrupting the SMPS.

Egress: Preventing the high-frequency switching noise generated by the SMPS from leaking back onto the mains power line and interfering with other equipment (Electromagnetic Compatibility - EMC).

Key Components:

X-Capacitors: Connected between Line (L) and Neutral (N). Filter differential-mode noise (noise between L and N).

Y-Capacitors: Connected between L/Earth (GND) and N/Earth (GND). Filter common-mode noise (noise common to both L and N relative to Earth). Require high safety ratings.

Common-Mode Choke: A special transformer where windings on both L and N are on the same core. Presents high impedance to common-mode noise but low impedance to the 50/60Hz mains current.

Sometimes: Fusible resistors (safety), Metal Oxide Varistors (MOVs - surge protection).

Why it Matters: Essential for meeting stringent global EMC regulations (FCC, CE, CISPR). Failure here means your power supply is illegal to sell in most markets and could cause malfunctions in sensitive equipment.

Block 2: Rectifier - AC to Rough DC

Function: Converts the incoming Alternating Current (AC) mains voltage (e.g., 120VAC or 230VAC) into a pulsating Direct Current (DC) voltage.

Key Components:

Diode Bridge: Typically four diodes arranged in a bridge configuration. Allows current to flow only in one direction regardless of the AC input polarity, resulting in a full-wave rectified output.

Output: A pulsating DC voltage roughly equal to the peak of the AC input voltage (e.g., ~170VDC for 120VAC RMS, ~340VDC for 230VAC RMS). This pulsation is crucial for the next stage.

Block 3: Bulk Capacitor - The Energy Reservoir

Function: Smooths the pulsating DC output from the rectifier. It stores significant energy during the peaks of the rectified waveform and releases it during the valleys, creating a relatively stable, high-voltage DC bus (e.g., ~160VDC for 120VAC input, ~320VDC for 230VAC input).

Key Components:

High-Voltage Electrolytic Capacitors: Chosen for their high capacitance values (tens to thousands of microfarads) and voltage ratings (often 200V, 400V,or 450V). They handle significant ripple current.

Critical Parameters: Capacitance value (determines how much smoothing occurs), Voltage Rating (must exceed peak input), Ripple Current Rating (must handle the high-frequency charging/discharging currents without overheating). This capacitor is often the component limiting the power supply's lifespan.

Block 4: Switching Transistors - The High-Speed Chopper

Function: These are the heart of the "switching" action. Under the control of the PWM controller, they rapidly turn the high-voltage DC bus ON and OFF, creating a high-frequency square wave or pulse train.

Key Components:

Power MOSFETs: Most common due to their very fast switching speeds and high efficiency at high frequencies. Used in lower-power and higher-frequency designs.

IGBTs (Insulated Gate Bipolar Transistors): Often used in higher-power SMPS (hundreds of Watts to kW+) where their lower conduction losses outweigh slightly slower switching speeds compared to MOSFETs.

BJT (Bipolar Junction Transistors): Less common in modern designs due to slower switching and higher drive power needs.

Topologies Matter: How these switches are connected defines the SMPS topology, impacting isolation, voltage step-up/down capability, and component stress:

Non-Isolated: Buck (Step-Down), Boost (Step-Up), Buck-Boost (Step-Up/Down).

Isolated: Flyback (common for low/medium power), Forward (common for medium power), Push-Pull, Half-Bridge, Full-Bridge (common for high power). These use a transformer for isolation and voltage transformation.

Block 5: Transformer / Inductor - Energy Transfer & Transformation

Function:

In Isolated Topologies (Transformer): Provides three critical functions simultaneously: 1) Galvanic isolation between input and output (safety essential!), 2) Voltage step-up or step-down based on turns ratio, 3) Energy transfer from primary (input side) to secondary (output side) windings.

In Non-Isolated Topologies (Inductor): Primarily acts as an energy storage element. It stores energy when the switch is ON and releases it to the load when the switch is OFF, smoothing the output current and enabling voltage conversion.

Key Components:

Ferrite Core: The material of choice due to its excellent high-frequency magnetic properties (low losses at 10s kHz - MHz). E-cores, Toroids, and Planar designs are common.

Windings: Carefully designed copper wire (or PCB traces for planar magnetics) with specific turns ratios (transformer) or inductance values (inductor). Minimizing AC resistance ("skin effect") and proximity effect losses is crucial for efficiency.

High-Frequency Advantage: Operating at kHz/MHz frequencies allows these magnetic components to be significantly smaller than their 50/60Hz counterparts.

Block 6: Output Rectifier & Filter - Cleaning Up the Switched Power

Function: Converts the high-frequency AC waveform from the transformer secondary (isolated) or the switching node (non-isolated) back into smooth DC suitable for the load.

Key Components:

Rectification:

Diodes: Schottky diodes are almost universally used here due to their very low forward voltage drop (reducing conduction losses) and fast recovery time (reducing switching losses). Crucial for efficiency. Synchronous rectification (using MOSFETs instead of diodes) is common in high-efficiency designs for even lower losses.

Filtering:

LC Filter: A combination of an inductor (or sometimes just the transformer leakage inductance) and capacitors. This low-pass filter smooths the rectified pulses into stable DC by averaging them and removing high-frequency switching ripple.

Output Capacitors: Typically low-ESR (Equivalent Series Resistance) electrolytic capacitors and/or ceramic capacitors. They handle the high-frequency ripple current and provide transient response (quickly supplying current during sudden load changes). Polymer capacitors are popular for their low ESR and long life.

Output Quality: This stage directly determines the output voltage ripple and noise specifications critical for sensitive loads.

Block 7: PWM Controller & Driver - The Master Conductor

Function: This is the brain of the SMPS. It constantly monitors the output voltage and adjusts the duty cycle (the ON time vs. OFF time ratio) of the switching transistors to maintain a rock-solid output voltage despite changes in input voltage or output load.

How it Works:

The feedback circuit (next block) provides a scaled-down sample of the output voltage.

The PWM controller compares this sample to a precise internal reference voltage.

Based on the difference (error), the controller adjusts the duty cycle of its output pulses.

If output voltage drops, duty cycle increases (transistors ON longer) to deliver more energy.

If output voltage rises, duty cycle decreases (transistors ON shorter) to deliver less energy.

Driver Circuit: Amplifies the low-power PWM signal from the controller chip to the high-current/voltage levels needed to rapidly switch the power transistors ON and OFF cleanly and efficiently.

Control Techniques:

Voltage Mode Control: Simplest. Controls duty cycle based only on output voltage error.

Current Mode Control: More advanced. Controls duty cycle based on output voltage error and the peak current flowing through the switch/inductor. Offers superior line regulation, inherent overcurrent protection, and simpler loop compensation. Dominant in modern designs.

Hysteretic (Bang-Bang) Control: Simpler, no loop compensation, but variable frequency. Common in low-power applications.

Constant On-Time / Off-Time (PFM): Used at light loads to maintain high efficiency by reducing switching frequency.

Block 8: Feedback Circuit - Closing the Loop

Function: Provides an isolated (in isolated topologies) and accurate representation of the output voltage back to the PWM controller, enabling precise regulation.

Key Components:

Voltage Divider: Resistors that scale down the high output voltage to a level the controller can handle (e.g., 3.3V output scaled down to 1.0V for a controller with a 1.0V reference).

Optocoupler (Essential in Isolated Topologies): Provides galvanic isolation. Contains an LED on the output side and a phototransistor on the controller side. The LED brightness (controlled by the output voltage via the voltage divider and an error amplifier like a TL431) modulates the current through the phototransistor, sending the feedback signal across the isolation barrier.

Error Amplifier (e.g., TL431 Shunt Regulator): Often used on the output side to compare the scaled voltage to a precise internal reference (e.g., 2.5V). Its output drives the optocoupler LED, translating the voltage error into an optical signal.

Stability: This loop must be carefully compensated (using resistors/capacitors) to ensure the SMPS responds quickly to changes without oscillating.

Block 9: Snubber / Clamp Circuits - Protecting the Switches

Function: To suppress damaging voltage spikes and ringing caused by the parasitic inductance and capacitance inherent in the circuit layout and components (especially transformer leakage inductance) when the switching transistors turn OFF.

Why Needed: Rapidly switching OFF high current through an inductor (transformer primary or buck inductor) causes a large voltage spike (V = L * di/dt). Without protection, this spike can exceed the transistor's voltage rating and destroy it.

Types:

RCD Snubber (Passive): A Resistor-Capacitor-Diode network across the switch or transformer primary. Absorbs the spike energy, dissipating it as heat in the resistor. Simple and common.

Active Clamp: Uses an auxiliary switch and capacitor to actively clamp the voltage spike and often recycle some of the energy back to the input or output. More complex but more efficient.

Zener Clamp: A Zener diode rated just above the normal operating voltage, placed across the switch. Conducts if voltage exceeds its rating, clamping the spike. Simple for lower power.

Block 10: Auxiliary Power Supply - Powering the Brain

Function: To generate the low DC voltages (e.g., +12V, +5V) required to power the PWM controller IC, drivers, and any cooling fans before the main output is established and stable. Essential for start-up and continuous operation.

Implementation:

Often a small, simple, self-oscillating flyback converter tapped off the high-voltage DC bus.

Sometimes powered directly from the AC input via a small linear regulator or resistive dropper (less efficient) for initial start-up.

Once the main output is running, it may be powered from an auxiliary winding on the main transformer (more efficient).

5.Putting it All Together: The Energy Flow Dance

Imagine energy flowing through the system:

Mains AC enters, gets filtered (EMI), rectified to pulsating DC, and smoothed to HV DC (Bulk Cap).

The PWM Controller tells the Switching Transistors to rapidly chop this HV DC.

The chopped pulses energize the Transformer primary (isolated) or Inductor (non-isolated), storing energy magnetically.

When the switch turns OFF, the magnetic field collapses, transferring energy to the secondary side (isolated) or directly to the output stage (non-isolated).

The Output Rectifier converts this transferred energy back to DC pulses.

The Output Filter (LC) smooths these pulses into clean DC for the load.

The Feedback Circuit constantly monitors this output DC.

The PWM Controller adjusts the switch duty cycle based on feedback to keep the output voltage perfect.

Snubbers protect the switches from voltage spikes during switching transitions.

The Auxiliary Supply keeps the controller powered throughout.

6.The Advantages Revisited: Understanding the "How"

Now you can see how each block contributes to the core SMPS advantages:

Efficiency: Minimal time spent in the lossy linear region of transistors (ON/OFF states), use of low-loss Schottky/synchronous rectifiers, optimized magnetics.

Size/Weight: High switching frequency enables tiny magnetics and capacitors.

Flexibility: Topology choice (transformer turns ratio) defines voltage step-up/down and isolation. Control loop handles wide input range.

Regulation: Sophisticated feedback and control loop maintains tight output voltage.

7.Conclusion: Mastery of Power Conversion

Understanding an SMPS block-by-block demystifies this essential technology. From filtering noise and rectifying AC, through the high-speed switching dance and magnetic energy transfer, to precise feedback control and output smoothing, each stage plays a critical role in achieving the remarkable efficiency, compactness, and performance that define modern power electronics. Whether you're selecting a power supply for your next project, designing one, or simply appreciating the engineering inside your devices, this knowledge empowers you to make informed decisions and leverage the full potential of switch-mode technology. The next time you plug in a device, remember the complex and elegant symphony of components working tirelessly within its power adapter to deliver clean, efficient DC power.

8.FAQS

Q1: What’s the core advantage of SMPS over linear power supplies?

A: SMPS achieve 70-95%+ efficiency by rapidly switching transistors (minimizing heat loss), while linear supplies waste excess voltage as heat. This enables smaller size, wider input ranges (e.g., 90-264VAC), and higher power density – critical for modern electronics.

Q2: Why does SMPS generate EMI noise? How is it controlled?

A: High-frequency switching (kHz-MHz) creates electromagnetic interference (EMI). The EMI filter block (X/Y capacitors + common-mode choke) suppresses noise:

X-caps filter differential-mode noise (L↔N),

Y-caps and chokes block common-mode noise (L/N↔Earth).

Without EMI filters, SMPS fail FCC/CE/CISPR certifications.

Q3: Why do SMPS use electrolytic capacitors? What causes their failure?

A: Bulk capacitors (Block 3) smooth rectified DC with high capacitance/voltage ratings. They degrade due to:

Heat (from ripple current),

ESR (Equivalent Series Resistance) increase over time,

Drying electrolyte. High-quality caps with low ESR and 105°C ratings extend lifespan.

Q4: When should I choose a Flyback vs. Buck converter?

A: Flyback (isolated): Ideal for <150W (e.g., phone chargers). Uses a transformer for safety isolation and voltage step-up/down.

Buck (non-isolated): Best for step-down only (e.g., 12V→5V CPU power). Higher efficiency but no isolation.

Industrial/high-power apps use Half/Full-Bridge topologies.

Q5: How does PWM control stabilize output voltage?

A: The PWM controller (Block 7) adjusts transistor duty cycle (ON/OFF ratio) based on feedback:

Feedback circuit samples output voltage,

Compares it to a reference (e.g., 1.0V),

Increases duty cycle if voltage drops (delivering more energy),

Decreases if voltage rises.

Current-mode control adds overcurrent protection.

Q6: Why do SMPS need snubber circuits?

A: Switching off transistors induces voltage spikes from parasitic inductance (V=L·di/dt). Snubbers (Block 9) absorb these spikes:

RCD snubbers dissipate energy as heat,

Active clamps recycle energy to boost efficiency.

Without snubbers, MOSFETs/IGBTs fail catastrophically.

Q7: What causes audible noise in SMPS?

A:Magnetics: Transformer/inductor coils vibrating at switching frequency (if <20kHz),

Ceramic capacitors: Piezoelectric effect under high ripple,

Load pulsing: Control loop instability.

Fix with potting compounds, higher switching frequencies, or loop compensation.

Q8: Is synchronous rectification worth the cost?

A: Yes for ≥50W designs. Replacing output diodes with MOSFETs (Block 6) cuts conduction losses by 60-80%. Critical for >90% efficiency in server/telecom PSUs.

Q9: How do SMPS achieve universal AC input (90-264VAC)?

A: The rectifier + bulk capacitor (Blocks 2-3) convert AC to ~127-370VDC. The PWM controller then adjusts duty cycle to compensate for input changes – no bulky tap-switching needed.

Q10: Why opt for SMPS in LED drivers?

A: SMPS deliver:

Precise constant current/voltage (via feedback control),

Flicker-free dimming (PWM/analog compatible),

High efficiency (reducing thermal stress on LEDs).
