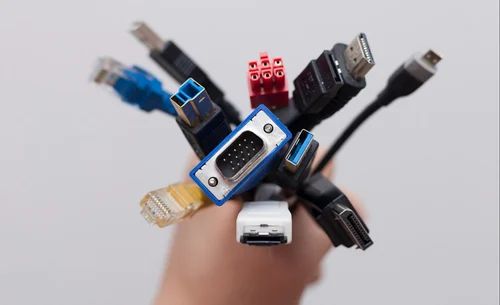

Ever stared at the back of your laptop, monitor, or gaming PC, confronted by a confusing array of cables and plugs, each sporting a different number of metal prongs – those pin connectors? Whether it's a simple 2 pin plug adapter for your lamp or the complex 6 pin to 8 pin adapter feeding your high-end graphics card, understanding these pins is crucial for both functionality and safety. Using the wrong plug or a flimsy adapter isn't just inconvenient; it can pose serious risks like electric shock or fire. This comprehensive guide cuts through the confusion. We'll explain the purpose of different pin counts, focusing on common adapters like the 2pin to 3pin adapter and 6 pin to 8 pin adapter, empowering you to connect your devices correctly and safely.
At its core, a pin connector on a power plug or cable is a metal contact point designed to carry electrical current from the source (like a wall outlet or power supply unit - PSU) to your device. The number of pins isn't arbitrary; each serves a specific electrical function:
Live/Hot Pin (L): Carries the incoming alternating current (AC) voltage from the power source. This is the primary path for electricity flowing into the device. Often color-coded brown or black internationally (but never rely solely on color!).
Neutral Pin (N): Completes the electrical circuit, providing the return path for the current back to the source. Typically color-coded blue internationally.
Earth/Ground Pin (E or GND): The critical safety pin. It provides a low-resistance path for fault current (like a short circuit inside the device) to flow safely into the earth, preventing the device casing from becoming electrified and causing electric shock. Usually color-coded green & yellow stripes internationally. This is the defining pin in a 3-pin plug.
Why Pin Count Matters:
The number of pins directly relates to the type of power being delivered (AC mains vs. DC device power) and the safety features included (grounding). Understanding this is key before considering any plug adapter.
This is where you encounter plugs like the 2 pin plug adapter and the essential 2pin to 3pin adapter. These connect devices to your standard wall outlet (AC mains power).

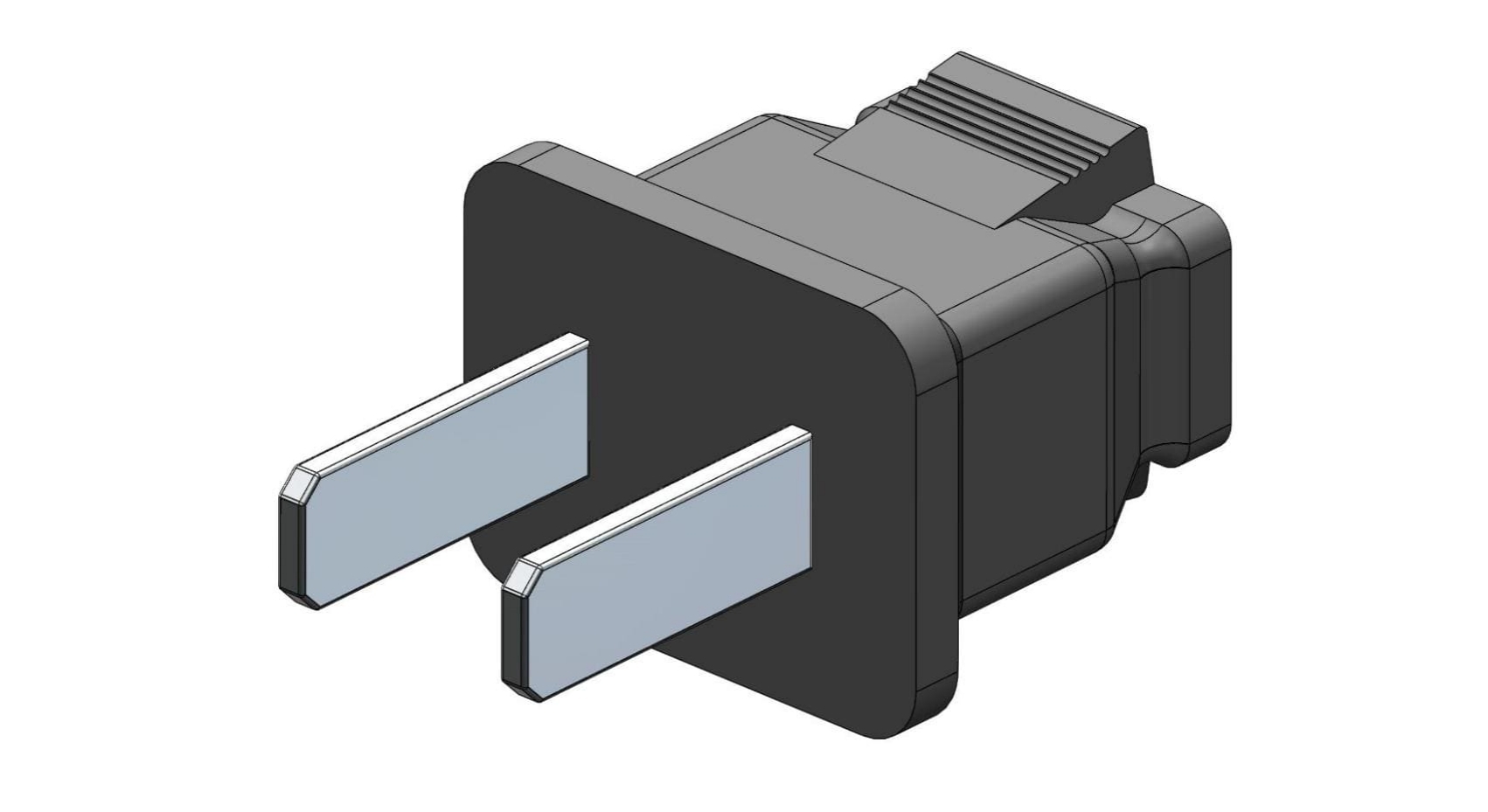

Pins: Live (L) and Neutral (N).
Function: Delivers basic AC power. Common on low-power, double-insulated devices where the risk of electrical fault is minimal and the device casing is non-conductive (plastic). Examples: Phone chargers (lower wattage), small lamps, radios, some laptop power bricks (though the brick itself often has a 3-pin input!), shavers.
Appearance: Often has two equal-sized, round or flat pins. Common standards: Europlug (CEE 7/16), older US non-polarized NEMA 1-15.
Limitations & Risks:
No Grounding: Offers no protection against electric shock if an internal fault makes the casing live. Dangerous for metal-cased devices or high-power appliances.
Unpolarized (Often): Live and Neutral can be reversed in the socket. While many modern devices handle this, some sensitive electronics or older appliances might not function optimally or could pose a slight safety risk.
The 2 Pin Plug Adapter: Often refers to a simple plug shape converter (e.g., converting a US 2-pin to a UK 3-pin socket shape), but crucially, it does NOT add grounding. It simply allows a physical connection. Using a device requiring grounding with only a 2 pin plug adapter is unsafe.

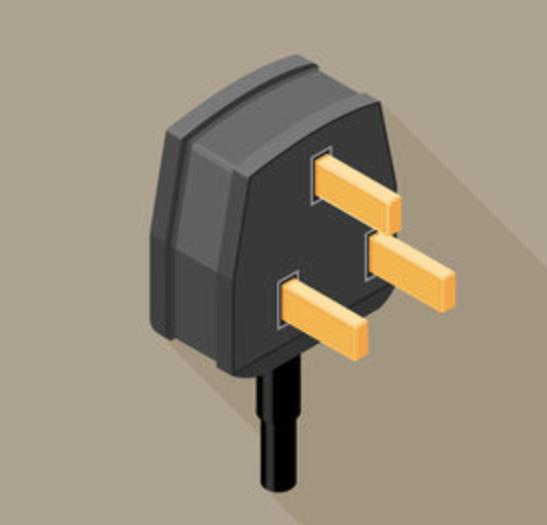

Pins: Live (L), Neutral (N), and Earth/Ground (E).
Function: Delivers AC power with essential grounding safety. The ground pin provides a dedicated path for fault current, significantly reducing the risk of electric shock. Polarization ensures Live and Neutral are connected correctly.
Appearance: Three pins – configuration varies globally (e.g., UK BS 1363 has three large rectangular pins, US NEMA 5-15 has two flat pins and one round/U-shaped ground pin, EU Schuko has two round pins with side grounding clips). The ground pin is often longer or differently shaped.
Use Case: Mandatory for devices with metal casings, high-power appliances (kettles, toasters, washing machines, desktop PCs, monitors), and any equipment where user safety is paramount. A proper grounded plug adapter maintains this safety.
This is arguably the most important adapter from a safety perspective.
What it Does: Physically converts a device with a 2-pin plug (ungrounded) to plug into a 3-pin grounded wall socket.
The Core Question: Does it Provide Grounding?
Most Common Type (Cheap/Simple): NO. These adapters simply provide the physical shape conversion. The grounding terminal on the socket (the hole or clip meant for the ground pin) remains unused. The device remains ungrounded. This is electrically equivalent to just plugging the 2-pin plug into the socket directly.
Grounded Type (Essential for Safety): YES. These adapters feature a metal tab, wire, or terminal that must be properly connected to the grounding point of the socket. In some designs (like UK 3-pin sockets), the adapter has a physical ground pin that engages the socket. In others (like US sockets), a metal tab must be secured under the socket's faceplate screw (which should be grounded). This connection is vital.
When You Might Need One (Use with Extreme Caution):
Temporarily powering a double-insulated, low-power, plastic-cased device (like a small charger or plastic lamp) that originally has a 2-pin plug, when only a 3-pin socket is available. Ensure the device genuinely doesn't require grounding.
Significant Risks & Warnings:
False Sense of Security: Plugging a device that requires grounding into a simple 2pin to 3pin adapter (without a functional ground connection) provides ZERO safety benefit. The device casing can still become live during a fault.
Improper Grounding: Even "grounded" adapters are useless and unsafe if the grounding tab isn't correctly attached to a verified ground source (like the socket's ground screw). Many users neglect this step.
Overloading: Cheap adapters may not be rated for high currents.
Fire & Shock Hazard: Using these adapters incorrectly, or on devices that need grounding, is a leading cause of electrical accidents.
The Safer Alternatives:
Replace the Cable: If the device has a removable power cable, replace it with a proper 3-core (Live, Neutral, Ground) cable terminated with a molded 3-pin plug suitable for your region.
Use a Properly Grounded Extension Lead: Choose one with built-in surge protection and ensure it's plugged into a grounded outlet.
Avoid if Possible: Seriously question the need. Is the device genuinely safe without grounding? If there's any doubt, don't use the adapter.
Moving away from AC mains, pin connectors are equally vital for delivering Direct Current (DC) power within devices or from external power bricks. This is where connectors like the 6 pin to 8 pin adapter come into play, primarily in the realm of computer hardware.
The Context: PCI Express (PCIe) Power:
Modern graphics cards (GPUs) are power-hungry components. The standard PCIe slot on a motherboard can only deliver up to 75 watts.
High-performance GPUs often require significantly more power (150W, 225W, 300W+).
Enter the Dedicated GPU Power Connectors:

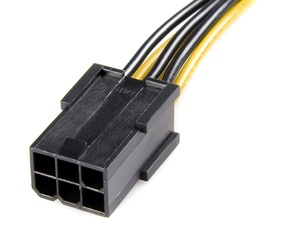

6-Pin PCIe Power Connector:
Pins: 6 pins total. Typically: 3 x 12V (Yellow), 3 x Ground (Black). Sometimes uses 3 x 12V and 3 x Sense/Ground.
Rating: Standardized to deliver up to 75 watts (in addition to the 75W from the slot = 150W total).

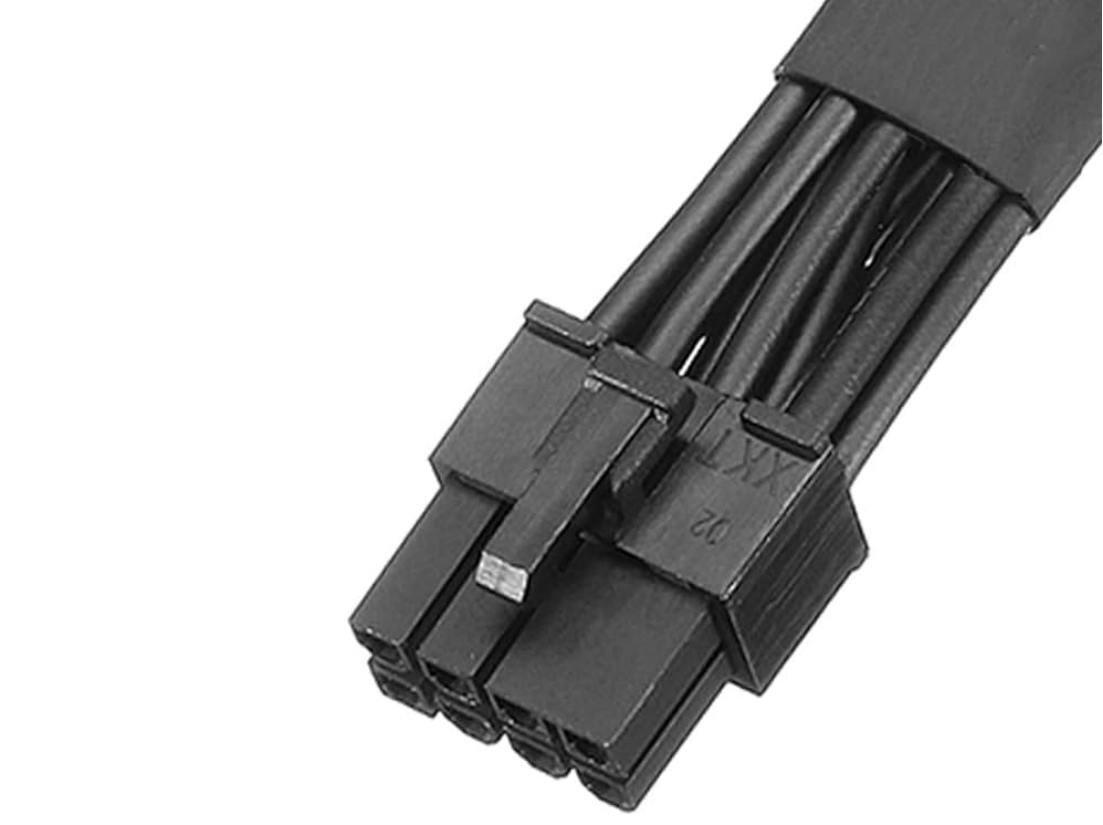

8-Pin PCIe Power Connector:
Pins: 8 pins total. Typically: 3 x 12V (Yellow), 5 x Ground (Black). Or 4 x 12V and 4 x Ground in some high-power variants. Often includes sense pins to confirm cable connection.
Rating: Standardized to deliver up to 150 watts (plus 75W from slot = 225W total).
Scenario: Your Power Supply Unit (PSU) has spare 6-pin PCIe connectors, but your new graphics card requires an 8-pin connector.
What the Adapter Does: Physically converts two 6-pin PCIe connectors from the PSU into a single 8-pin connector that plugs into the GPU.
How it (Attempts) to Work: It combines the power delivery capacity (amperage) from two 6-pin cables. A single 6-pin provides 75W; two combined theoretically provide 150W, matching the 8-pin requirement.
Crucial Considerations & Warnings:
PSU Capability is Paramount: The adapter is just a passive piece of plastic and wire. Your PSU must have sufficient total power (Wattage) and amperage (A) on its +12V rail(s) to handle the GPU's peak load. Using an adapter on an underpowered PSU will cause instability, crashes, or PSU failure.
Quality Matters Immensely: Cheap, thin-wire adapters are fire hazards. They can overheat and melt under the high current demands of a powerful GPU. Always use adapters from reputable brands with thick gauge wires.
Not a Universal Solution: Some very high-power GPUs (e.g., those needing two 8-pin connectors) absolutely require native 8-pin cables from a capable PSU. An adapter might not suffice or could be dangerous.
Check the Specs: Consult both your GPU's power requirements and your PSU's specifications (+12V rail amperage/wattage and available PCIe connectors) before resorting to an adapter. Native connectors are always preferable.
Risk of Overloading Cables/Ports: Combining two 6-pin cables puts more load on the PSU's internal connectors and cables than a single native 8-pin path is designed for. Ensure your PSU is robust.
Molex (Peripheral) 4-Pin (AMP Mate-N-Lok):
Pins: 4 pins: Yellow (+12V), Black (Ground), Black (Ground), Red (+5V).
Legacy Use: Once ubiquitous for powering hard drives, optical drives, and fans. Largely superseded by SATA power connectors.
SATA Power (15-Pin):
Pins: 15 pins in a flat, L-shaped connector. Carries +3.3V (often unused), +5V, +12V, and multiple grounds.
Modern Standard: Used for powering SATA hard drives (HDDs), solid-state drives (SSDs), and optical drives. More efficient and supports hot-swapping.
ATX 24-Pin (or 20+4 Pin):
Pins: The main power connector supplying the motherboard. Delivers various voltages (+3.3V, +5V, +12V, -12V, +5VSB) and control signals (PS_ON#, PWR_OK).
CPU 4-Pin (ATX12V) / 8-Pin (EPS12V):
Pins: Dedicated connectors providing high-current +12V power directly to the CPU voltage regulator module (VRM) on the motherboard. The 4-pin connector is common for mainstream CPUs, while the 8-pin connector is used for high-end/overclocked CPUs.
Understanding the language of pin connectors – from the basic safety distinction between a 2 pin plug adapter and a properly grounded 2pin to 3pin adapter, to the high-power demands addressed by a 6 pin to 8 pin adapter – is fundamental for anyone using electronic devices. Pins are not just metal bits; they define the flow of power and the critical safety mechanisms protecting you and your equipment.
By following the guidelines outlined here – focusing on device specifications, power supply capabilities, and using high-quality, correctly implemented connectors – you can ensure your devices receive the power they need, operate reliably, and most importantly, keep you safe from electrical hazards.
Q: Is it safe to use a 2-pin plug in a 3-pin socket without an adapter?
A: Physically, if it fits securely (e.g., a Europlug in a Schuko socket which accepts 2-pin but has grounding clips), it's generally electrically safe for the device, provided the device is double-insulated and doesn't require grounding. However, it doesn't utilize the grounding safety of the socket. Never force a plug that doesn't fit.
Q: My device has a 3-pin plug, but my wall socket only has 2 holes. Can I use a 3-pin to 2-pin adapter?
A: This is HIGHLY DISCOURAGED and often UNSAFE. Removing the ground pin eliminates the critical safety protection. If the device requires grounding (metal case, high power), using it ungrounded creates a significant shock risk. The only potentially safe scenario is if the device is explicitly marked as "Double Insulated" (symbol: a square inside a square) and the manufacturer confirms it doesn't require the ground pin. Otherwise, do not use it. Get the socket upgraded or use a properly grounded extension cord from a grounded outlet.
Q: Can I use a 6 pin to 8 pin adapter for my GPU?
A: Maybe, but with important caveats (See Section 4):
Your PSU must be powerful enough overall and have strong +12V rails.
You must use two separate PCIe 6-pin cables from the PSU (don't use a single cable's daisy-chained connectors).
You must use a high-quality adapter with thick wires.
It's not ideal for very high-power GPUs (e.g., > 225W total). Native 8-pin is best.
Monitor temperatures on the adapter and cables under load.
Q: What does the "pin" actually refer to?
A: It refers to the individual metal contact points (prongs, sockets, blades) within a connector that make electrical contact and carry the current. On a plug, they are the protruding pins. On a socket or cable connector, they are the receptacles (often called "female" pins, though the industry is moving away from this terminology).
Q: Why are there so many different plug shapes?
A: Primarily due to historical development and regional/national electrical standards and regulations (voltage, current, safety requirements). Efforts like the IEC system aim for some standardization for device inlet connectors (like the common "figure-8" or "cloverleaf" connectors on power bricks).
