1.Introduction
Ever faced these frustrations? Your phone’s storage is full, but you can’t transfer photos to a USB drive. You need to type a long document, but the touchscreen slows you down. You want to import DSLR photos directly to your phone but lack a computer. While smartphones are powerful, their inability to connect peripherals limits their potential. Enter the OTG adapter – a tiny, affordable device that shatters these limitations. This guide demystifies OTG adapters, answers critical questions about OTG
technology, and unlocks your device’s true capabilities.
2.What is an OTG Adapter?
An OTG (On-The-Go) adapter is a compact physical connector or short cable. Its revolutionary purpose: transforming your smartphone or tablet from a passive "device" into an active "host" – granting it computer-like control over USB peripherals.
This magic relies on the USB OTG protocol, an extension of standard USB. Traditional USB assigns fixed roles:
Host (e.g., PC): Powers devices and issues commands.
Peripheral (e.g., flash drive): Receives power and obeys commands.
OTG introduces Dual-Role Device (DRD) capability. Supported devices (like your phone) dynamically switch roles based on connection context.

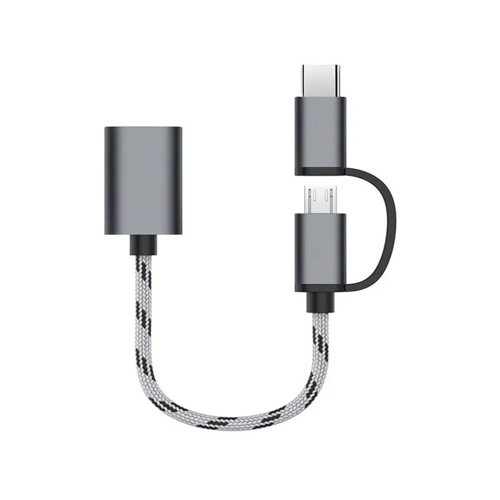

Common OTG adapter types:

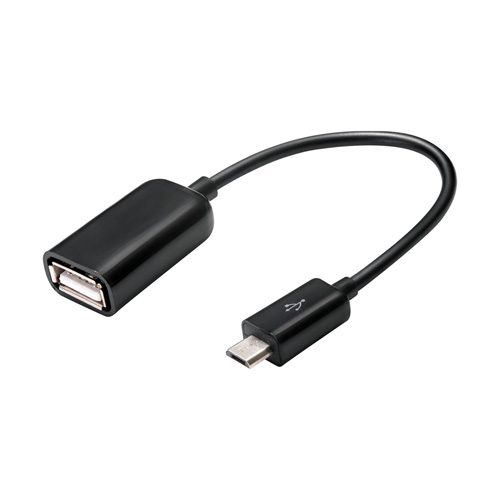

Micro-USB OTG: For older Android devices (Micro-USB male → USB-A female).

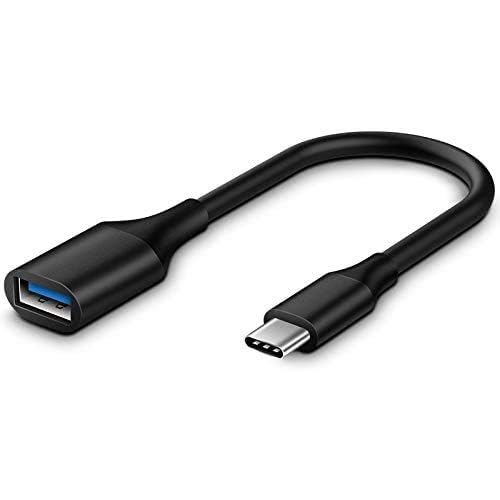

USB-C OTG: Modern standard (USB-C male → USB-A female).
Powered OTG Hubs: Multi-port hubs with external power for high-demand devices.
Expand Storage (OTG flash drive
): Access files on USB drives/external HDDs.
Boost Productivity (OTG keyboard/mouse
): Type/docs efficiently.
Enhance Gaming (OTG game controller
): Console-like mobile gaming.
Transfer Media (OTG camera connection
): Import photos/videos from DSLRs.
Create Music (OTG audio interface
): Connect MIDI keyboards/mics.
Print Wirelessly (OTG printing
): Use USB printers.
Wired Internet (OTG ethernet
): Stable connection via Ethernet adapter.
Charge Devices (OTG charging
): Power other gadgets (cautiously).
Fun Accessories (USB accessories
): USB lights/fans.
Key Insight: An OTG adapter turns your phone into a central hub – transforming it from an isolated device into a versatile workstation.
3.USB vs. OTG Adapter: Key Differences
"USB adapter" is a broad term (e.g., USB-C to HDMI). The real comparison is standard USB functionality vs. OTG-enabled functionality.
Feature | Standard USB (No OTG) | OTG Adapter |
Protocol | Basic USB protocol | USB protocol + OTG extension |
Device Role | Fixed: Host OR Peripheral | Dynamic: Switches between Host/Peripheral |
Hardware Key | Standard wiring | ID Pin (Pin 5) grounded – forces host mode |
Functionality | Phone acts ONLY as peripheral | Phone acts as HOST (controls peripherals) |
Power Flow | Host → Peripheral | Host → Peripheral (phone powers devices) |
Critical Distinction: The grounded ID pin in OTG adapters signals your phone to activate host mode – a capability absent in standard USB adapters.
4.How Do I Know If My Phone Supports OTG?
Check specs/manual: Look for "USB OTG", "USB Host", or "Host Mode Support".
Manufacturer’s website: Search "[Your Phone Model] specifications".
OTG Checker Apps:
Instantly confirms support via USB Host API detection.
USB OTG Checker
OTG?
Easy OTG Checker
Get a confirmed OTG adapter + low-power peripheral (e.g., FAT32 USB drive).
Connect them to your phone.
Positive signs:
"USB device connected" notification.
File manager shows new storage.
Mouse cursor/keyboard lights activate.
Android Version: Native support since Android 3.1 (Honeycomb), widespread from Android 4.0+.
Power Limits (OTG power
): Phones can’t power high-drain devices (e.g., HDDs). Use a powered OTG hub.
File Systems: FAT32 (universal), exFAT (Android 6.0+), NTFS (read-only without apps like Paragon NTFS).
5.Is OTG the Same as USB-C?
NO! This is a critical misconception.
USB-C: A reversible physical connector type (defines shape/pins).
OTG: A functional protocol enabling role-switching (host/peripheral).
USB-C devices CAN support OTG (most modern Androids do).
USB-C DOES NOT guarantee OTG (implementation is hardware-dependent).
OTG works with other ports (e.g., Micro-USB) via ID pin grounding.
Analogy: USB-C is the "shape of the plug." OTG is the "ability to boss other devices around."
6.Choosing and Using OTG Adapters
Micro-USB OTG: Older Android devices.
USB-C OTG (USB C OTG adapter
): Modern phones/tablets.
Lightning to USB 3 Camera Adapter (Apple): Limited functionality (MFi-certified only).
Basic Needs (flash drives/mice): Simple OTG adapter.
Multi-Device (keyboard+mouse+drive): OTG hub.
High-Power Devices (HDDs): Powered OTG hub (external power required).
Safe Removal: Always "eject" storage in file manager before unplugging.
Power Awareness: Use powered hubs for energy-intensive devices.
File Systems: Format drives as FAT32/exFAT for best compatibility.
Heat Management: Disconnect if adapters/devices overheat.
7.Conclusion
The OTG adapter is a triumph of minimalist engineering – a $5 tool that redefines your phone’s capabilities. By leveraging the OTG protocol and grounded ID pin, it breaks the "peripheral-only" barrier, transforming your device into a command center for peripherals.
Whether freeing up storage, enabling desktop-grade productivity, or unlocking creative tools, OTG turns limitations into opportunities. As USB-C and power delivery (PD) evolve, OTG will continue bridging mobile and desktop ecosystems.
8.FAQS
Q: Why won’t my OTG adapter recognize a USB drive? (OTG not working
)
A: Troubleshoot: 1) Confirm phone support, 2) Test with FAT32 drive, 3) Try a mouse, 4) Check for debris/damage, 5) Restart phone.
Q: Can I use OTG while charging my phone?
A: Only with dual-port OTG hubs (one port for charging, one for OTG).
Q: Does OTG drain battery? (OTG battery drain
)
A: Yes – mice/keyboards (minimal), flash drives (moderate), HDDs (severe). Use powered hubs for HDDs.
Q: Do all USB-C phones support OTG? (does USB C support OTG
)
A: Most do, but verify via specs/apps/physical test. Not guaranteed.
Q: Can iPhones use OTG? (iPhone OTG
)
A: Limited support via Lightning to USB 3 Camera Adapter (official Apple/MFi only). Works for cameras, audio interfaces, keyboards – not full Android-like flexibility.
