In our work and daily lives, the connectivity needs of our digital devices are becoming unprecedentedly complex. Have you ever been frustrated by the pitifully few USB ports on your laptop, unable to connect your mouse, keyboard, and external hard drive at the same time? Or perhaps you've wanted to share the exciting championship game from your living room on both a TV and a projector, only to find you have just one HDMI output port?
When faced with these "port shortages" or "screen sharing" dilemmas, people often turn to two seemingly similar solutions: Hubs and Splitters. However, although both are designed to solve connectivity problems, their working principles and application scenarios are fundamentally different—one might even say completely opposite. Choosing the wrong one will not only fail to solve your problem but will also lead to a waste of time and money, and could potentially even damage your devices.
As experts in the field of connectivity solutions, we find that the "difference between a hub and a splitter" is one of the most common points of confusion for users. Therefore, we have written this exhaustive guide to completely demystify these two concepts. This article will delve deep into their definitions, core functions, technical differences, typical use cases, and provide you with a professional purchasing checklist. After reading this, you will be able to confidently select the right device for any scenario.

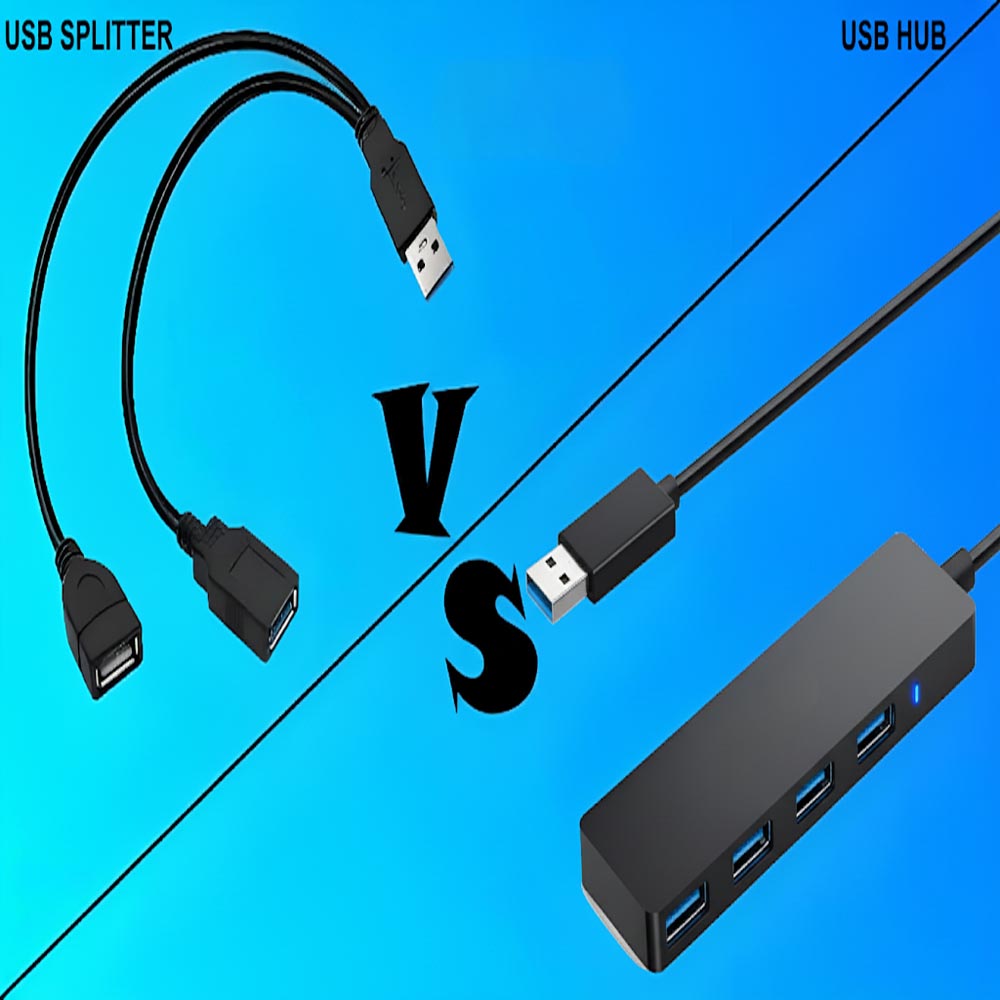

Before diving into the details, let's establish the core concept with a simple analogy:
A USB Hub is like a multi-socket power strip for data: It gathers multiple different devices (inputs) and connects them to one port on your computer (output). Its data flow is "Many-to-One." Its core function is Consolidation.

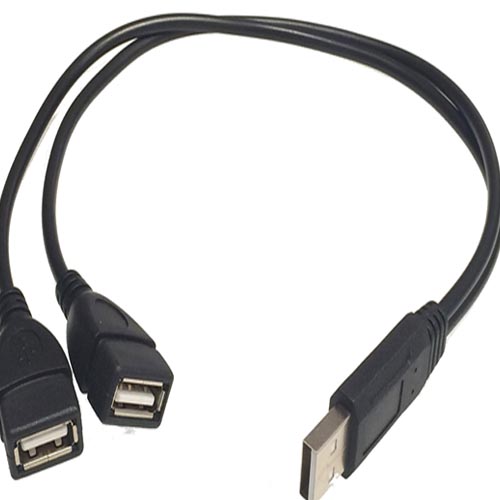

A USB Splitter is like a Y-shaped flow divider for video: It takes the signal from one source (input), copies it perfectly, and sends it to multiple display devices (outputs). Its data flow is "One-to-Many." Its core function is Duplication/Replication.
Remember this fundamental difference: A hub solves the problem of having too many input devices, while a splitter solves the problem of having too few output screens. Their logical directions are complete opposites.
A hub, typically a USB hub, is a piece of hardware that allows you to connect multiple USB devices through a single port. When the USB ports on your laptop or desktop motherboard are insufficient, a hub comes to the rescue. It receives data from multiple peripherals (like a mouse, keyboard, flash drive, printer, webcam), consolidates these data streams, and communicates with the host computer's single USB port through one cable.
The host system recognizes the hub as a composite device and can communicate independently with each peripheral connected to it.
The Main Types of Hubs: From Simple to All-Powerful
The world of hubs is far richer than one might imagine. They can be categorized based on function, power source, and interface type:
Passive (Bus-Powered) Hub:This type of hub does not have its own power adapter; it draws all its power from the host USB port it's connected to.
Pros: Portable, inexpensive, requires no extra power outlet.
Cons: Limited power supply. A standard USB 3.0 port on a host computer typically provides 5V/0.9A (4.5W) of power. This power must be shared between the hub itself and all the devices connected to it. Therefore, it's only suitable for low-power devices like mice, keyboards, and flash drives. If you connect an external hard drive, a high-power webcam, or try to charge your phone, it's likely to fail or become unstable due to insufficient power.
Active (Self-Powered) Hub:This type of hub comes with its own power adapter and draws power directly from a wall outlet.
Pros: Ample and stable power supply. Each port can provide standard USB power, easily driving multiple external hard drives, professional audio interfaces, scanners, and other "power-hungry" devices, while also being able to charge your devices.
Cons: Larger in size, requires a power outlet, slightly less portable.
Traditional USB-A Hub: The most common type, providing multiple rectangular USB-A ports for connecting legacy USB devices.
USB-C Hub: Designed for modern laptops (like MacBooks, Dell XPS) equipped with USB-C ports. It connects to the host via USB-C and provides multiple USB-A, USB-C, or other types of ports.

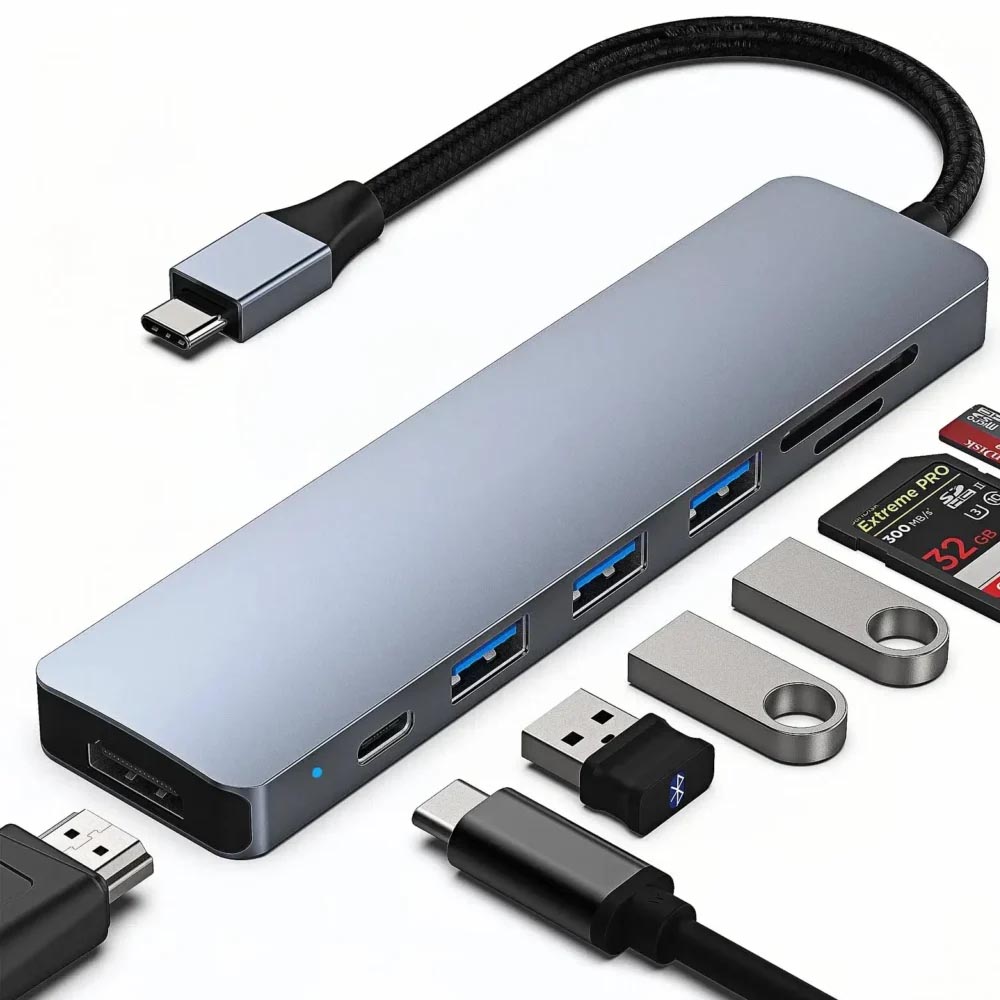

Multi-function Hub / Docking Station:This goes beyond simple USB expansion and is the mainstream in today's market. These hubs are the "Swiss Army knife" of connectivity. In addition to USB ports, they often integrate multiple functions, such as:
Video Output: HDMI or DisplayPort for connecting external monitors.
Card Reader: SD/MicroSD slots, convenient for photographers and content creators.
Wired Network: An RJ45 Ethernet port for a more stable and faster connection than Wi-Fi.
Audio Jack: A 3.5mm headphone/microphone port.
Power Delivery (PD) Charging: This is an extremely important feature. A USB-C hub with PD allows you to charge your laptop through the hub while it's connected, solving the pain point of thin-and-light laptops with a single USB-C port that can't be expanded and charged at the same time.
Thunderbolt Hub/Dock:This is the top-tier product among hubs. Although it also uses the USB-C connector shape, it's based on Intel's Thunderbolt 3/4 technology, providing an ultra-high bandwidth of up to 40Gbps (4 times that of USB 3.1 Gen 2). This means it can support multiple 4K monitors, ultra-fast external SSDs, and even external graphics cards, all while providing stable power to devices.
Scenario 1: Insufficient Peripheral Ports. This is the core need. When the number of devices you need to connect simultaneously—mouse, keyboard, flash drive, printer, drawing tablet, etc.—exceeds the number of USB ports on your computer.
Scenario 2: Simplifying Desktop Cabling. Especially for laptop users, a multi-function hub or docking station can connect all peripherals (monitor, keyboard/mouse, network, power) to the hub. When you arrive at your workstation, you just need to plug in a single USB-C cable to connect everything and start working, greatly enhancing convenience.
Scenario 3: Connecting High-Power Devices. When you need to use one or more external hard drives, USB fans, or professional microphones, a Self-Powered (Active) Hub is a necessary choice to ensure they operate stably.
Scenario 4: Needing a Card Reader or Wired Network. Many modern thin-and-light laptops have eliminated the card reader and Ethernet port. A multi-function hub that integrates these features is the best supplementary solution.
A splitter, most commonly an HDMI splitter, is a piece of hardware that duplicates a single video signal source and outputs it simultaneously to two or more display devices. All monitors connected to the splitter will display the exact same image. It is purely a signal Mirroring/Duplication tool.
For example, if you have a Blu-ray player (the source) and want to output a 4K movie to both a TV and a projector at the same time, you would need a "1 in 2 out" HDMI splitter.
The job of a splitter may seem simple, but it involves critical technical details, especially for high-definition digital signals:
Buffering & Amplification: When an HDMI signal is divided into multiple paths, its signal strength decreases significantly. A high-quality active splitter (with its own power supply) will first buffer and amplify the incoming signal before distributing it to the output ports. This ensures that the signal strength of each output is sufficient to drive long HDMI cables and maintain picture quality. Passive (unpowered) splitters perform very poorly and are generally only suitable for short-distance, low-resolution scenarios; they are strongly not recommended.
EDID Handshake: EDID (Extended Display Identification Data) is a set of data that a display uses to inform the source device about "who I am and what resolutions/refresh rates I can support." When a splitter is connected, it must manage this "handshake" process. Typically, it will read the EDID of the "least capable" monitor connected to it, or use a generic EDID, and report that back to the source. This is why if you connect a 4K monitor and a 1080p monitor to a splitter at the same time, both screens will usually display at 1080p.
HDCP Handshake: HDCP (High-bandwidth Digital Content Protection) is an encryption technology used to prevent piracy. All devices in the chain (source, splitter, display) must successfully complete the HDCP "handshake" to play protected content from sources like Netflix or Blu-ray discs. A cheap or non-compliant splitter may fail to handle HDCP correctly, resulting in a black screen.
Many people buy an HDMI splitter hoping to display different content on two monitors (i.e., the "Extend these displays" mode in Windows or macOS). This is absolutely impossible!
The Reason: From the perspective of the source (your computer), it is outputting a signal through a single HDMI port. The splitter makes all downstream devices appear as a "single" display to the computer. The computer only knows to send one video signal stream to this "single" destination. All the splitter does is mechanically copy and distribute that one signal stream.
The Correct Way to Extend Your Desktop:
Use the multiple, separate video output ports on your computer (e.g., connect one monitor to an HDMI port and another to a DisplayPort).
Use a DisplayPort that supports MST (Multi-Stream Transport) or daisy-chaining.
Use a true Docking Station or a USB-C multi-function hub that supports DisplayLink or MST technology. These devices have dedicated video processing chips inside that allow the computer to recognize them as multiple, independent displays.
Once it's clear that a splitter is for signal "duplication" and not "extension," its use cases become very specific. You should choose a splitter in the following situations:
Scenario 1: Commercial Displays and Digital Signage. In retail stores, restaurants, airports, or at trade shows, you want to synchronously play the same promotional video, advertisement, or information on multiple screens. This is the perfect application for a splitter.
Scenario 2: Home Audio/Video Entertainment. You have both a large-screen TV and a projector at home, but your AV receiver or player only has one HDMI output. A splitter allows you to send the signal to both devices simultaneously, letting you switch between them based on the viewing atmosphere without constantly plugging and unplugging cables.
Scenario 3: Conference and Educational Presentations. In a conference room or classroom, a presenter needs to display their laptop screen on both a small monitor on the podium and a large screen/projector for the audience. A splitter ensures that the presenter and the audience see the exact same content.
Scenario 4: Professional AV Production and Live Streaming. In a live broadcast or recording environment, directors and camera operators may need to view the feed from the same camera source on different monitors. SDI splitters are widely used in these professional settings.
Once you have determined whether you need a hub or a splitter, the next step is to select a high-quality, suitable device from the myriad of products available.
Key Factors to Consider When Buying a Hub
Port Types and Quantity:
First, take inventory of all the devices you need to connect to determine how many USB-A, USB-C, HDMI, and other ports you need. It's better to have one or two extra ports than just enough.
If you use a modern thin-and-light laptop like a MacBook, a USB-C hub is a must.
Data Transfer Speed:
Pay attention to the USB standard. USB 2.0 (480Mbps) is only suitable for low-speed devices like keyboards and mice. For transferring files, be sure to choose a hub that supports USB 3.0/3.1/3.2 (5Gbps or 10Gbps) to save a significant amount of time.
If you need ultimate speed for connecting high-speed SSDs or for professional video editing, a Thunderbolt 3/4 (40Gbps) dock is your best choice.
Video Output Specifications (for Multi-function Hubs):
This is a common pitfall. Many cheap USB-C hubs, despite having an HDMI port, only support a maximum of 4K@30Hz. At this refresh rate, mouse movements will feel noticeably choppy, making it unsuitable for use as a primary daily monitor.
Be sure to choose a hub that is explicitly advertised to support 4K@60Hz for a smooth visual experience. Achieving this typically requires your laptop's USB-C port to support the DP 1.4 protocol.
Power Delivery (PD) Charging Wattage:
If your laptop supports charging via USB-C, checking the hub's PD port wattage is crucial.
Check the wattage of your laptop's original charger (e.g., 65W, 96W, 100W). The hub's PD output should be equal to or greater than the original charger's wattage to ensure proper charging under full load. The hub itself consumes some power (about 5-15W), so a hub advertised with 100W PD input might only deliver 85-95W to the laptop.
Power Mode:
As mentioned earlier, if you need to connect high-power devices like external hard drives, do not hesitate to choose a Self-Powered (Active)
USB Hubs and USB Splitters, though they may look similar, play opposite roles in our digital world. The hub is a consolidator, bringing your many peripherals together into a single computer port, a master tool for solving "input shortages." The splitter is a replicator, mirroring your single source signal onto multiple screens, an expert in "synchronous display."
We hope this in-depth guide has thoroughly cleared up any confusion. Understanding their core difference—the "Many-to-One" consolidation versus the "One-to-Many" replication—is the first step to making the right choice. Building on that, and by using our professional buyer's guide to focus on key technical parameters like power mode, interface specs, bandwidth, and protocol support, you can select the perfect connectivity solution for your specific needs like an expert.
Q1: Will a USB hub slow down my devices?
A: Yes, but usually to an acceptable degree. All devices on a hub share the total bandwidth of the hub's connection to the host computer. For example, if you connect three external hard drives to a 5Gbps USB 3.0 hub and transfer data on all of them simultaneously, their total combined speed will not exceed 5Gbps. For low-speed devices like keyboards and mice, the impact of this bandwidth sharing is negligible.
Q2: Does an HDMI splitter reduce picture quality or introduce lag?
A: A high-quality active splitter will not reduce picture quality because it buffers and re-clocks the signal. However, a cheap passive splitter or a poor-quality active one can cause noise or flickering due to signal degradation. As for lag (latency), the time a splitter takes to process the signal is extremely short, typically within a few milliseconds, which is unnoticeable for video playback and most applications. However, for competitive e-sports that demand the absolute fastest response times, any extra processing step could introduce a minuscule amount of delay.
Q3: Can I connect a hub to another hub (daisy-chaining)?
A: Yes, this practice is known as daisy-chaining. The USB specification theoretically supports up to 5 layers of hubs. However, doing so increases latency, and each hub in the chain shares the bandwidth and power from the layer above it, which can lead to instability, especially when connecting multiple passive hubs. It is generally not recommended unless there is no other option.
Q4: How can I actually get two monitors to show different content (extended desktop)?
A: To reiterate, do not use a splitter. You need to:
Connect the two monitors to two separate, independent video output ports on your computer (e.g., one to an HDMI port, one to a DisplayPort).
If your computer only has one video output (like a single USB-C port), you need to buy a multi-function hub or docking station that supports MST (Multi-Stream Transport). Look for terms like "Extended Mode," "MST," or explicit statements that it can support two monitors with different content in the product description.
