| 1. Introduction |
| 2. Deconstructing the Power Good Signal |
| 3. How a Power Good Signal Is Generated? |
| 4. Power Good vs. Power OK (POK) |
| 5. The Four Pillars of Power Good Functionality |
| 6. The Power Good Signal in Different Devices |
| 7. Troubleshooting Your Device: When Power Good Fails |
8. The Ultimate Protection: Choosing a High-Quality Power Supply |
| 9. Conclusion |
| 10. FAQS |
Your computer won't turn on. Your laptop flickers on and off. You’ve checked the power cord, the outlet, and the power button, but nothing seems to work. While these symptoms can point to a variety of issues, a common and often overlooked culprit is a silent little signal inside your power supply unit—the Power Good signal.
This tiny, unsung hero acts as the gatekeeper for your electronics. Without it, your device is simply a collection of inert components. In this comprehensive guide, we will pull back the curtain on the Power Good signal, demystifying its function, exploring its critical role in system stability, and showing you how to diagnose problems related to it. Whether you're a seasoned PC builder or simply trying to figure out why your device isn't working, understanding the PG signal is the key to mastering your device's most fundamental operation.
At its core, the Power Good signal, often abbreviated as the PG signal, is a digital logic signal generated by a power supply. Its sole purpose is to tell the motherboard and other components, "Hey, I'm ready to go. My voltage outputs are stable and within the safe operating range."
Think of it as the green light at an intersection. Your motherboard, CPU, and all other components are waiting at the light. They will not proceed—will not begin their boot-up sequence—until they see that solid green light from the power supply.
The process of generating the Power Good signal is a precise and carefully timed sequence. It doesn't just switch on the moment you flip the power button. Instead, it follows a meticulous three-step process:
Voltage Monitoring: The power supply unit (PSU) contains dedicated internal circuitry that constantly monitors all the major voltage rails it outputs, typically the +12V, +5V, and +3.3V lines. These voltages are the lifeblood of your computer's components.
Threshold Detection: The monitoring circuit checks if each of these voltage rails has reached a specific, predefined threshold. For example, it might need to see that the +12V line is at least +11.4V, the +5V at least +4.75V, and so on. This ensures that the power is not just present but is also at a sufficient level to operate the sensitive electronics.
The Crucial Power-Up Delay: This is where the magic happens. Even after all voltages have reached their thresholds, the power supply doesn't immediately send the Power Good signal. There is a built-in power-up delay (known as the T_ON or PG_DELAY in technical specifications), which typically lasts between 100 to 500 milliseconds. This short delay is absolutely essential. It gives the voltages time to stabilize and prevents a potentially damaging “brown-out” situation where components try to start with insufficient or fluctuating power. Once this delay period has passed and all voltages remain stable, the Power Good signal is asserted (set to a high logical state, usually between 2.5V and 5V).
In short, the PG signal is not a simple "on/off" indicator. It's an intelligent signal that confirms the power supply is not only on but is also delivering the stable, reliable power that a device needs to boot safely.
You might also hear about a Power OK or POK signal. While similar in concept, they serve different purposes. A POK signal typically indicates that a single voltage rail is good. For instance, a device might have a separate POK signal for its +12V line and another for its +5V line. The Power Good signal, on the other hand, is a composite signal. It is only asserted when all the required voltage rails are confirmed to be within their safe operating range, making it a more comprehensive indicator of the power supply's overall health.
The Power Good signal isn't just a simple green light; it's a vital part of a device's power management and protection system. Its functions are so fundamental that without them, modern electronics would be prone to frequent crashes and hardware damage.
This is the most well-known function of the Power Good signal. When you press the power button on your computer, the PSU begins its voltage generation sequence. Once the PG signal is asserted, it triggers a chain reaction on the motherboard. The motherboard receives this signal and, in response, it releases the CPU from its reset state. Only then can the CPU begin executing the first instructions of the BIOS (Basic Input/Output System) to start the boot-up process.
This carefully orchestrated sequence prevents what is known as a "partial boot." If the CPU were to start executing code before the memory or other components were receiving stable power, it could lead to system instability, corrupted data, or even permanent damage to the hardware. The PG signal ensures the system starts from a known, safe state.
The PG signal doesn't just matter at startup. It is an active, real-time indicator. During normal operation, the power supply continues to monitor its outputs. If any of the voltages suddenly drop or rise outside of their specified thresholds—due to a surge, a short circuit, an internal PSU failure, or a sudden change in load—the Power Good signal will immediately de-assert (go to a low logical state).
When the motherboard detects this sudden loss of the PG signal, it initiates a hardware reset or an emergency shutdown. This is a crucial protective measure. It is far better to have the system abruptly shut down than to continue running on unstable, potentially damaging power. This immediate response prevents components from being subjected to voltages that could literally burn them out.
When a device fails to turn on, the Power Good signal is one of the first things technicians and enthusiasts check. A lack of this signal can quickly point to a power supply issue. If you press the power button and hear the fans spin for a second before everything goes dead, it often means the PSU detected a fault and de-asserted the PG signal as a safety measure. On the other hand, if the PSU fans run and the lights are on, but the system doesn’t boot and there is no display, a missing PG signal is a likely culprit.
Understanding this signal allows you to move beyond simply swapping parts. It gives you a clear path for troubleshooting and helps you diagnose power supply issues with precision, saving you time and money.
Just as the PG signal is critical for a safe startup, it also plays a key role in the shutdown process. When you initiate a software shutdown from your operating system, the motherboard sends a signal to the PSU to turn off. The PSU will then begin to decrease its output voltages. The PG signal is specifically designed to go low before the output voltages drop below their minimum acceptable levels.
This ensures that the motherboard and CPU are the first to know the power is going away. They have a brief moment—a few milliseconds—to finish their final tasks, such as saving data, before the power is completely cut. This is a more graceful shutdown, preventing data corruption and protecting the integrity of the system's state.
While the PG signal is most famous in the context of desktop computers, the principles behind it are universally applied in various forms of power supply technology.
In the world of desktop PCs, the ATX power supply is the gold standard, and it has a dedicated pin for the Power Good signal. The ATX 24-pin main power connector, which plugs directly into the motherboard, has a specific pin (#8, typically colored gray) designated for this signal. This standardized design ensures compatibility and reliability across a wide range of motherboards and PSUs. Any quality ATX power supply will strictly adhere to these specifications.

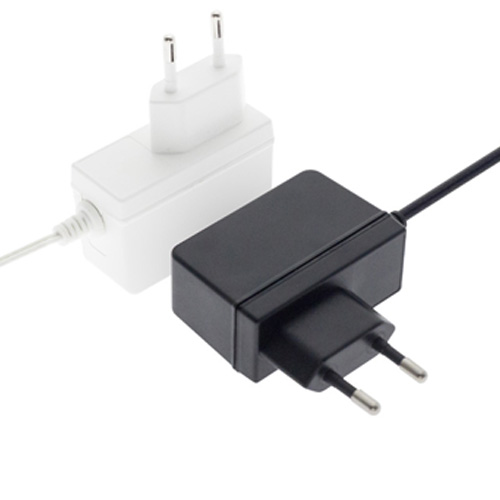

Unlike an internal PSU, an external power adapter for a laptop, monitor, or other electronic device does not have a separate pin to send a PG signal to the device. However, this does not mean the concept is absent. A high-quality power adapter achieves the same goals through robust internal protection circuits.

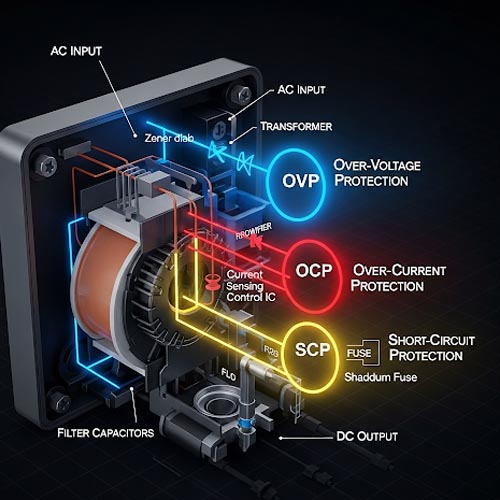

These adapters are built with a suite of safety features, including:
Over-Voltage Protection (OVP): If the output voltage exceeds a safe limit, the circuit will shut down the adapter.
Over-Current Protection (OCP): This prevents the adapter from delivering too much current, which can damage the device it's powering.
Short-Circuit Protection (SCP): If the output terminals are shorted, the adapter will shut off to prevent damage to itself and the connected device.
These protection circuits act as the internal “gatekeepers.” If the adapter’s output becomes unstable, these circuits will trip and cut the power. While the connected device doesn't receive a specific "Power Good" message, the result is the same: the device is protected from unsafe power delivery.
When you're looking for a laptop adapter or any other external power supply, checking for these safety features and certifications (like UL, CE, and RoHS) is the equivalent of checking for a Power Good pin on an ATX PSU. It's the sign of a safe power supply that will protect your valuable electronics.
Diagnosing a Power Good issue doesn't require an advanced degree in electronics. Here are some simple steps and symptoms to watch for:
No Boot, but Fans Spin: You press the power button, the fans on your PSU and CPU start for a split second, then everything immediately shuts down. This is a classic sign that the PSU is detecting an internal fault and failing to assert the Power Good signal.
Intermittent Booting: Your device sometimes turns on, sometimes it doesn’t. This could indicate a failing component within the PSU that is causing the Power Good signal to fluctuate.
Frequent Crashes or Reboots: While many things can cause this, an unstable Power Good signal can lead to random restarts as the motherboard detects a sudden drop in voltage.
Check All Connections: Before you do anything else, make sure every cable is firmly seated. A loose connection to the motherboard or graphics card can prevent the system from getting a consistent power draw, which can, in turn, affect the PG signal.
The Paperclip Test (for ATX PSUs): This is a basic test to see if the PSU itself can turn on. You can use a paperclip to jump the PS_ON pin on the 24-pin connector to a ground pin. If the PSU fans spin up and stay on, it doesn't mean the PG signal is working, but it does confirm the PSU is at least partially functional. This is a very basic starting point for power supply troubleshooting.
The Multimeter Test: For a more precise check, you can use a multimeter to measure the voltage on the PG signal pin while the PSU is turned on. A reading of around 2.5V to 5V is normal. If the reading is close to 0V, the PG signal is not being asserted, indicating a clear PSU failure.
Use a PSU Tester: For those who frequently deal with power supply issues, a dedicated PSU tester is an invaluable tool. It plugs directly into the PSU connectors and gives you an immediate digital readout of all the voltage rails, including the Power Good signal.
If your device uses a power adapter and you suspect a power issue, the first and simplest step is to try a different, known-good power adapter with the correct voltage and current ratings. This can immediately tell you if the adapter is the source of the problem.
The Power Good signal and its counterparts in external power adapters are more than just technical specifications; they are the bedrock of your device's safety. When you are building a new PC, replacing a faulty PSU, or looking for a reliable power adapter for your laptop or other electronics, don't just focus on the wattage.
Here's what to look for:
Safety Certifications: A quality power supply will have multiple international safety certifications. Look for a UL certified logo (for the U.S.), CE (Europe), or RoHS compliance. These certifications mean the product has been tested to meet strict safety and environmental standards.
Built-in Protection: Ensure the product description explicitly mentions protection features like OVP, OCP, and SCP. These are the modern-day equivalents of the Power Good principle in external adapters.
Reputable Brand: A brand with a long history of producing reliable power supplies is more likely to have invested in research and development to ensure their products have proper voltage regulation and robust internal protection circuits.
Investing in a high-quality power adapter or PSU isn't just about ensuring your device turns on; it’s about protecting your entire system from potential damage, extending its lifespan, and providing the peace of mind that comes from knowing your equipment is running on safe, reliable power.
The Power Good signal may be a tiny detail in the grand scheme of electronics, but its role is absolutely critical. It’s the invisible guardian that stands watch over your device, ensuring that every component receives the stable and clean power it needs to operate safely. From the initial boot-up of a desktop PC to the continuous, reliable performance of a laptop powered by an external power adapter, the principle remains the same: stable voltage is non-negotiable.
Understanding this vital signal provides a powerful tool for troubleshooting and a deeper appreciation for the engineering behind reliable devices. When you choose a power supply or power adapter, you're not just buying a component that delivers electricity; you're investing in a sophisticated system designed to protect your valuable electronics from harm. So, look beyond the wattage and prioritize quality, safety certifications, and built-in protection features. This simple choice can be the difference between a system that runs flawlessly for years and one that is plagued by unpredictable failures.
The Power Good signal is a simple safety check. It’s a digital “OK” signal sent by the power supply to the motherboard. It tells the motherboard that all the voltages it needs are at the correct levels and have been stable for a set period. Without this signal, the motherboard will not allow the system to boot up, protecting it from unstable or insufficient power.
Indirectly, yes. A faulty Power Good signal often indicates a problem with the power supply itself. If a power supply is failing to deliver a consistent PG signal, it means its output voltages might be fluctuating, either too high or too low. Running a computer on unstable power can lead to component degradation and, in severe cases, cause a short circuit that can fry your motherboard, CPU, or other parts.
Most external power adapters for laptops or other devices do not have a dedicated pin for a Power Good signal like an internal ATX PSU. However, they achieve the same result through built-in protection circuits. A high-quality power adapter is designed to shut off automatically if the output voltage becomes unstable or if there is a short circuit. This acts as a built-in safety mechanism that serves the same purpose as the PG signal—protecting the connected device.
This is a very common symptom of a failing power supply. When you press the power button, the PSU attempts to power on. If it detects an internal fault or is unable to reach the required stable voltages, it will immediately de-assert the Power Good signal and shut itself down as a protective measure. This is a strong indicator that you need to test or replace your power supply.
If you have confirmed that all other voltages are correct but the PG signal is not being asserted, it's a clear sign of a PSU malfunction. The internal timing and control circuits that generate the signal are faulty. While the power might appear stable, the lack of the PG signal means the motherboard will not boot, and the PSU is considered a failure. In this case, the PSU must be replaced.
For a desktop PC, the simplest way is to use a PSU tester. These are inexpensive, small devices that plug into the main 24-pin connector and give you a clear digital readout of all voltages, including a dedicated PG signal status light or a value. For power adapters, the best and most reliable way to test is to try it on a different, known-working device or try a known-good adapter on the same device.
