In our increasingly digital world, the ability to connect devices and share visual content is fundamental. From watching a movie on a big-screen TV to giving a presentation on a projector, a simple piece of technology makes it all possible: the video cable. But what exactly is a video cable? And with so many different types on the market, how do you know which one you need?
This comprehensive guide will demystify the world of video cables. We’ll explore their function, evolution, and the specific types that dominate the market today. By the end, you’ll be an expert on the topic, able to choose the right cable for any situation, troubleshoot common display issues, and understand the technology that brings your digital life to the screen.
At its core, a video cable is an electronic component used to transmit visual data from a source device to a display device. Think of it as a digital pipeline. The source device—be it a computer, a gaming console, or a Blu-ray player—generates a video signal. The video cable then carries this signal to a destination device, such as a monitor, television, or projector, which interprets the data and displays it as an image.
This process sounds simple, but the reality is much more complex. A video signal contains an immense amount of information, including data for millions of pixels, color depth, brightness, and frame rate. The cable must be capable of transmitting this data with incredible speed and accuracy to ensure a high-quality, uncompressed, and artifact-free image. Different cables achieve this in different ways, which is why their design and specifications vary so widely.
For many years, video cables were purely analog, transmitting electrical signals that corresponded directly to the visual information. However, with the rise of digital technology, modern cables have become far more sophisticated. They now carry binary data, which is less susceptible to signal degradation and can support higher resolutions and more advanced features like audio and networking. This shift from analog to digital is one of the most significant changes in the history of display technology.
Understanding today’s cables requires a quick look back at how we got here. The evolution of video cables is a story of a continuous quest for higher quality, greater efficiency, and a more seamless user experience.
The Analog Era (1950s - Early 2000s)
The first video cables were simple and robust, designed to work with the analog signals of early televisions and computers.

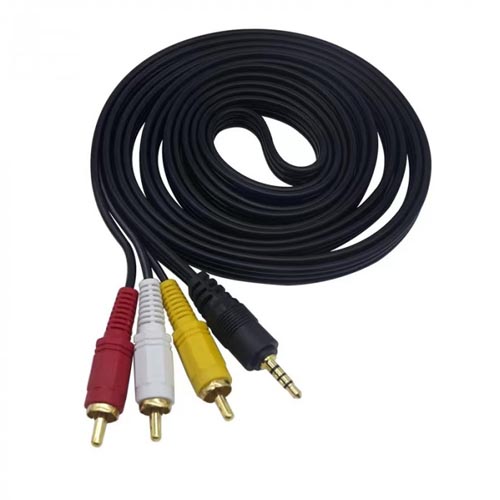

Composite Video: This was one of the earliest and most basic forms of video connectivity. It transmitted the video signal through a single yellow RCA connector, separating it from the audio (red and white connectors). While simple, its all-in-one signal transmission meant that video quality was relatively low. It was susceptible to color bleeding and signal interference, making it unsuitable for high-resolution displays. You’d find these on old VCRs, gaming consoles like the Nintendo 64, and early TVs.
S-Video: A step up from composite video, S-Video (or Separate Video) improved image quality by splitting the video signal into two separate components: luma (brightness) and chroma (color). This separation significantly reduced signal crosstalk and color bleeding, resulting in a sharper and cleaner image. It was a popular choice for DVD players and camcorders in the 1990s and early 2000s.
Component Video: Taking the concept of separation even further, component video divided the video signal into three distinct channels: one for brightness (Y) and two for color information (Pb and Pr). This separation eliminated all color bleeding, allowing for a much higher quality signal, including support for progressive scan and HD resolutions. It became the standard for many home theater systems before the widespread adoption of digital interfaces.

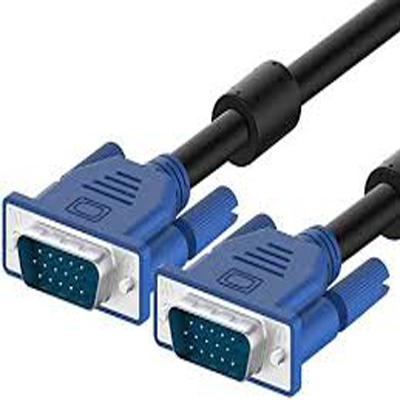

VGA (Video Graphics Array): For decades, VGA was the king of computer monitor connectivity. This iconic 15-pin connector transmitted an analog signal that was capable of supporting a wide range of resolutions, from standard 640x480 to higher resolutions like 1080p. While it delivered a reliable image, it was still an analog interface, meaning the signal could degrade over long distances or with poor cable quality. Despite its age, VGA cables are still used today, particularly for older projectors and legacy systems.
The Digital Revolution (Late 1990s - Present)
The shift to digital was a game-changer. Digital signals, being less prone to interference and degradation, allowed for crystal-clear images and opened the door to features like integrated audio and high-bandwidth data transfer.

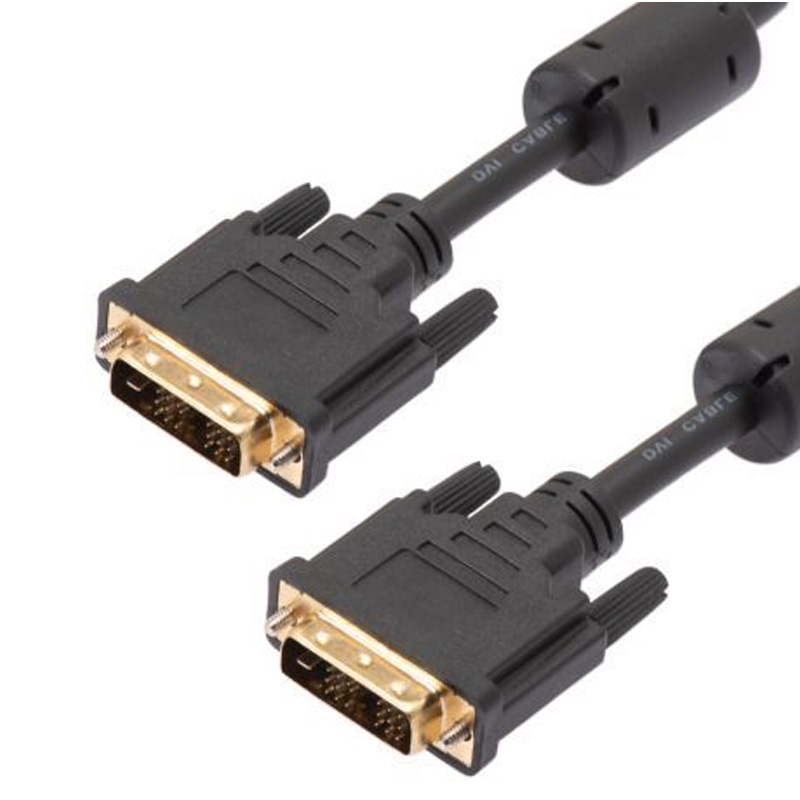

DVI (Digital Visual Interface): DVI was one of the first major digital video standards. It was designed specifically for computers and bridged the gap between analog and digital. DVI cables came in three main types: DVI-D (digital only), DVI-A (analog only), and DVI-I (integrated, supporting both). DVI-D was a huge leap forward, providing a pixel-perfect digital connection that was far superior to its analog predecessors. It was widely used on desktop computers and monitors before being largely replaced by more modern interfaces.
With the full advent of the digital era, older analog interfaces have been phased out, replaced by a new generation of digital interfaces that boast higher bandwidth, stronger features, and superior image quality. Today, the three main standards dominating the market are HDMI, DisplayPort, and the versatile USB-C.
HDMI is the undisputed champion of home entertainment. It was created to solve the problem of tangled cables in home theater systems by transmitting high-quality digital video and multi-channel audio signals over a single cable.
Key Features:
Audio and Video Integration: This is HDMI's biggest selling point. It can simultaneously transmit uncompressed digital video and up to 32 channels of high-quality audio, eliminating the need for separate audio cables.
HDCP (High-bandwidth Digital Content Protection): This is an encryption technology that prevents the illegal copying of copyrighted content. It ensures the legal playback of content from sources like Blu-ray movies and streaming services.
CEC (Consumer Electronics Control): This is a very convenient feature that allows you to control multiple compatible devices with a single remote. For example, you can use your TV remote to control a connected Blu-ray player or automatically turn on your TV when you power up a gaming console.
Versions and Performance: HDMI's version updates are designed to support higher resolutions and more advanced features.
HDMI 1.4: First introduced support for 4K (3840x2160) resolution, though at a limited refresh rate of 30Hz. It also supported an Ethernet channel and an Audio Return Channel (ARC).
HDMI 2.0: Boosted the refresh rate for 4K resolution to 60Hz and significantly increased bandwidth. This paved the way for the widespread adoption of HDR (High Dynamic Range), making images more vibrant and lifelike.
HDMI 2.1: This is currently the most powerful version, designed for next-generation gaming and A/V experiences. It boosts bandwidth to 48 Gbps, enabling support for 4K @ 120Hz and 8K @ 60Hz resolutions and refresh rates. It also introduced key features like VRR (Variable Refresh Rate) and eARC (Enhanced Audio Return Channel), which greatly enhance gaming smoothness and audio quality.

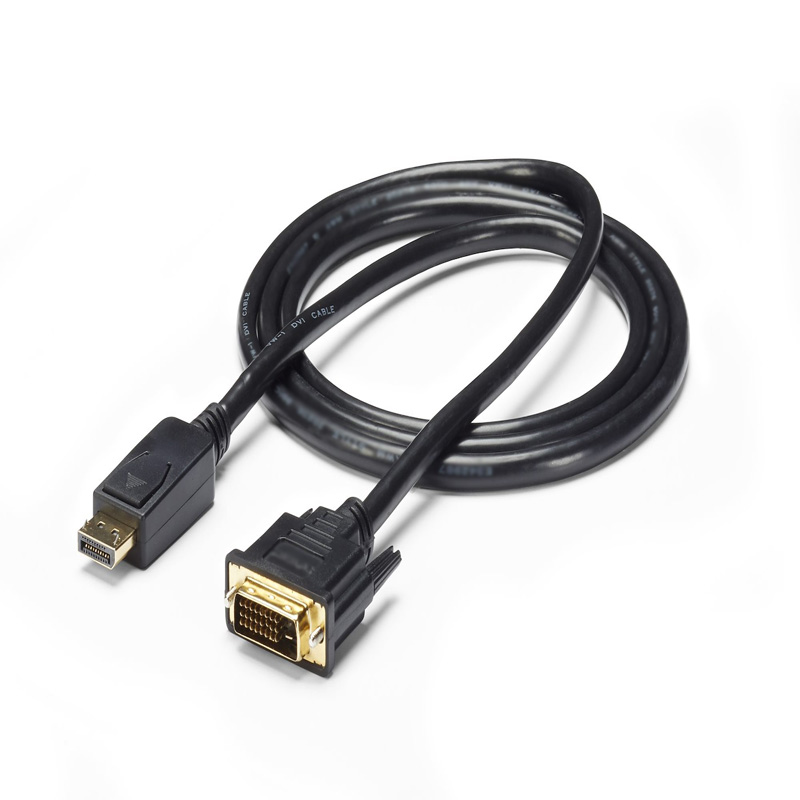

If HDMI was born for the home theater, DisplayPort has dominated the world of computers and professional displays. Developed by the VESA (Video Electronics Standards Association), it focuses on providing the highest possible image performance and the most flexible connectivity options.
USB-C is rapidly becoming the "universal port" connecting the world. It’s more than just a data port; it’s a revolutionary solution that integrates power, data, and video into a single cable.
The "Do-It-All" Port: USB-C's biggest advantage is its versatility. It can perform multiple tasks through a single port, including powering a laptop, transmitting high-speed data, and delivering a high-quality video signal.
DisplayPort Alt Mode: Many devices that support USB-C also feature DisplayPort Alternate Mode (DP Alt Mode). This allows them to output a DisplayPort video signal directly over a USB-C cable. This is especially common in modern laptops, where a single cable can connect to a monitor and charge the laptop at the same time, keeping the desktop tidy.
Thunderbolt: Developed by Intel, the Thunderbolt interface is physically compatible with USB-C but is significantly more powerful. It offers much higher bandwidth (e.g., Thunderbolt 4 provides 40 Gbps), enabling support for multiple 4K monitors or connections to high-speed external storage devices. This makes it the top choice for professionals and users who demand the ultimate performance.
The video cable, a seemingly insignificant component, is actually the cornerstone of modern digital life. Its evolution from simple analog signals to today's high-performance digital standards reflects our relentless pursuit of a clearer, smoother visual experience.
By understanding the features of modern interfaces like HDMI, DisplayPort, and USB-C, and knowing how to choose based on your specific needs, you'll be able to make the most informed decision for your devices. Whether it's for the ultimate gaming experience or for building a perfect home theater, choosing the right video cable is the first step to ensuring optimal performance.
Q: What is a video cable?
A video cable is an electronic cable that transmits a visual signal from a source device (like a computer, gaming console, or Blu-ray player) to a display device (like a monitor, TV, or projector). It acts as a digital or analog pipeline, carrying the data that is then interpreted and shown as an image on your screen.
Q: What's the difference between HDMI and DisplayPort?
While both HDMI and DisplayPort are modern digital standards, they serve different primary purposes. HDMI is the standard for consumer electronics and home theaters, as it transmits both video and audio through a single cable and is supported by virtually all TVs and consoles. DisplayPort is the go-to for computers and professional displays. It's known for its higher bandwidth, which is ideal for high refresh rate gaming monitors and multi-monitor setups, and it's a royalty-free standard.
Q: What does "4K" or "8K" support mean for a video cable?
"4K" or "8K" support means the cable can handle the massive amount of data required to display video at that resolution without signal loss. The ability to support these resolutions depends on the cable's bandwidth. For example, a standard HDMI 1.4 cable can handle 4K at 30Hz, while an HDMI 2.1 cable is required for 4K at 120Hz or 8K at 60Hz. To ensure you get the best performance, always make sure the cable's version matches or exceeds the capabilities of your devices.
Q: Do I need a special cable for gaming?
For the best gaming experience, you need a cable that can handle high refresh rates (like 120Hz, 144Hz, or higher) and support technologies like G-Sync or FreeSync. For PC gaming, DisplayPort is generally the best choice due to its high bandwidth. For console gaming on a 4K TV, you'll need a certified HDMI 2.1 cable to unlock features like 4K at 120Hz.
