1.Introduction
In the world of digital and analog video connections, the DVI cable (Digital Visual Interface) has played a crucial role in delivering high-quality video signals. Whether you're setting up a monitor, a projector, or a gaming system, understanding what a DVI cable is, its types, and its uses can help you make the best choice for your setup.
2.What Is a DVI Cable?
A DVI cable (Digital Visual Interface) is a video connection standard designed to transmit high-quality digital and analog video signals between a source (like a computer or DVD player) and a display (such as a monitor or projector). Introduced in 1999 by the Digital Display Working Group (DDWG), DVI was a significant upgrade over older analog standards like VGA.
Key Features of DVI Cables
Supports both digital and analog signals (depending on the type).
Delivers high-definition video (up to 2560x1600 resolution for dual-link DVI).
Commonly used in computer monitors, projectors, and older HDTVs.
Backward compatible with VGA via adapters.
3.Types of DVI Cables
Not all DVI cables are the same. There are three main types, each with different pin configurations and capabilities:
Transmits only analog signals (similar to VGA).
Rarely used today, but can be helpful for connecting older devices.

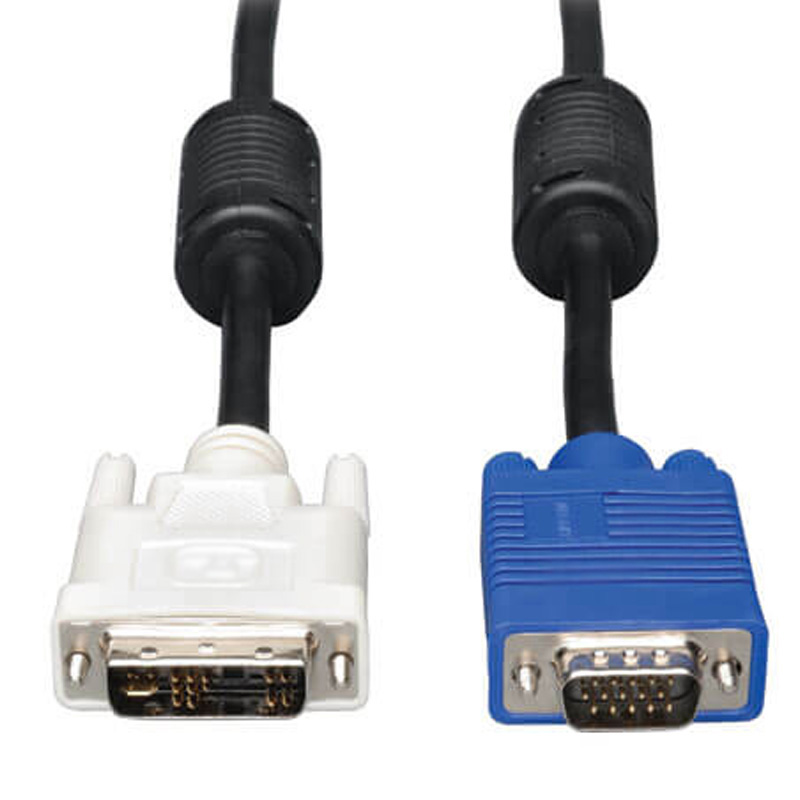

Compatible with VGA via a DVI-A to VGA adapter.
Carries only digital signals, providing better image quality.
Two subtypes:
Single-link DVI-D (supports up to 1920x1200 resolution).
Dual-link DVI-D (supports up to 2560x1600 resolution).
Commonly used for modern LCD monitors and digital displays.
Supports both digital and analog signals.
Two subtypes:
Single-link DVI-I (lower resolutions).

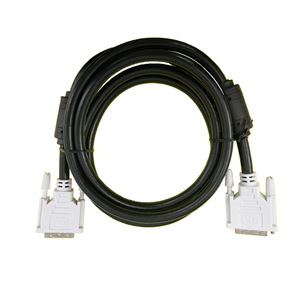

Dual-link DVI-I (higher resolutions).
Offers flexibility for connecting to both digital and analog displays.
| Type | Pins | Max Resolution | Signal Type |
|---|---|---|---|
| DVI-A | 17 | 1920x1200 | Analog only |
| DVI-D Single | 19 | 1920x1200 | Digital only |
| DVI-D Dual | 25 | 2560x1600 | Digital only |
| DVI-I Single | 23 | 1920x1200 | Both |
| DVI-I Dual | 29 | 2560x1600 | Both |
| Feature | DVI | HDMI |
|---|---|---|
| Signal Type | Digital/Analog | Digital only |
| Audio Support | No | Yes |
| Max Resolution | 2560x1600 (Dual) | 4K @ 120Hz (HDMI 2.1) |
| Common Uses | Monitors, PCs | TVs, Gaming, Home Theater |
HDMI is better for TVs and audio-video setups, while DVI is still useful for PC monitors.
| Feature | DVI | VGA |
|---|---|---|
| Signal Type | Digital/Analog | Analog only |
| Image Quality | Sharper, no signal loss | Prone to interference |
| Max Resolution | 2560x1600 | 2048x1536 |
DVI is superior to VGA in every way, but VGA is still found in legacy systems.

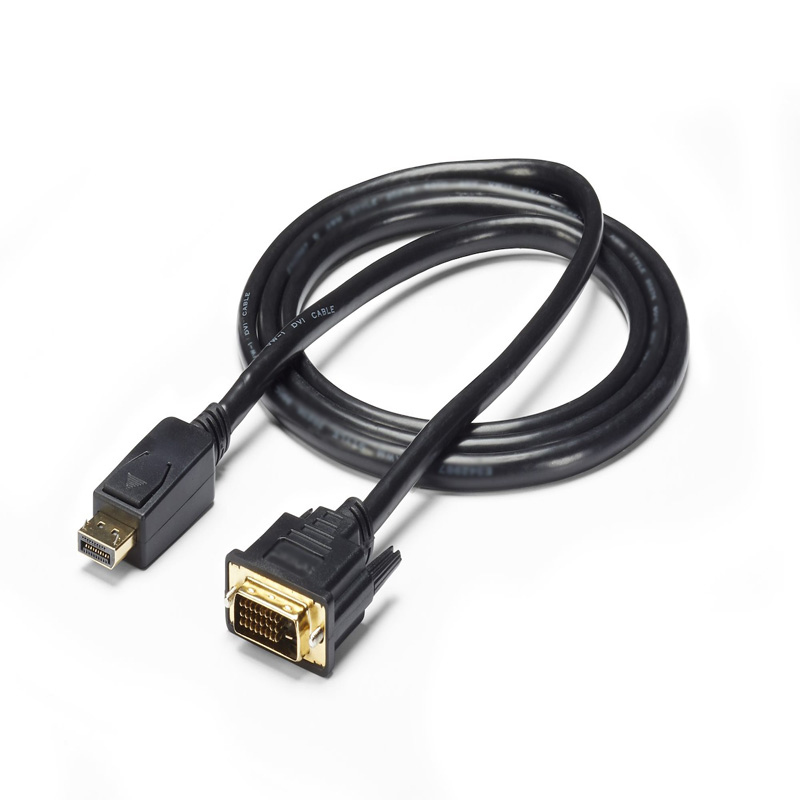

| Feature | DVI | DisplayPort |
|---|---|---|
| Max Resolution | 2560x1600 | 8K @ 60Hz (DP 2.0) |
| Audio Support | No | Yes |
| Refresh Rates | Up to 144Hz (Dual) | Up to 360Hz |
DisplayPort is the future, but DVI remains relevant for older monitors.
5.Common Uses of DVI Cables
Despite newer standards like HDMI and DisplayPort, DVI cables are still used in:
Many PC monitors still use DVI-D or DVI-I for high-resolution digital signals.
Some gaming monitors support DVI-D for high refresh rates (up to 144Hz at 1080p).
Older projectors and digital signage often rely on DVI connections.
Adapters allow DVI to HDMI or VGA conversions, extending the life of older hardware.
6.Advantages & Disadvantages of DVI Cables
✔ High-quality digital video (better than VGA).
✔ Supports high resolutions (up to 2560x1600).
✔ Dual-link DVI allows for high refresh rates.
✔ Backward compatible with VGA via adapters.
✖ No audio support (unlike HDMI).
✖ Bulky connectors (compared to HDMI and DisplayPort).
✖ Being phased out in favor of HDMI/DisplayPort.
7.How to Choose the Right DVI Cable
When selecting a DVI cable, consider:
Check Your Device Ports (DVI-D, DVI-I, or DVI-A).
Resolution Needs (Single-link for 1080p, Dual-link for 1440p+).
Length & Build Quality (Shielded cables reduce interference).
Future-Proofing (Consider HDMI or DisplayPort if possible).
8.Troubleshooting Common DVI Issues
Ensure the cable is securely connected.
Try a different DVI port or cable.
Use a dual-link DVI cable for higher resolutions.
Avoid long cable runs (over 15ft may degrade signal).
DVI to HDMI adapters work, but audio won’t transmit.
DVI to VGA adapters only work with DVI-A or DVI-I.
9.Conclusion
If you're building a modern home theater or gaming PC, HDMI or DisplayPort may be better. But for many users, DVI still delivers excellent video quality.
By understanding what a DVI cable is and how it compares to other standards, you can make the best choice for your setup.
10.FAQS
DVI stands for Digital Visual Interface, a video interface standard designed to transmit high-quality digital and analog video signals.
No, DVI cables do not support audio—they transmit only video signals. If you need audio, use an HDMI cable or a separate audio connection.
DVI-D carries only digital signals.
DVI-I supports both digital and analog signals, making it more versatile.
Yes, DVI provides a sharper, digital signal, while VGA is analog and prone to interference. DVI supports higher resolutions and better image quality.

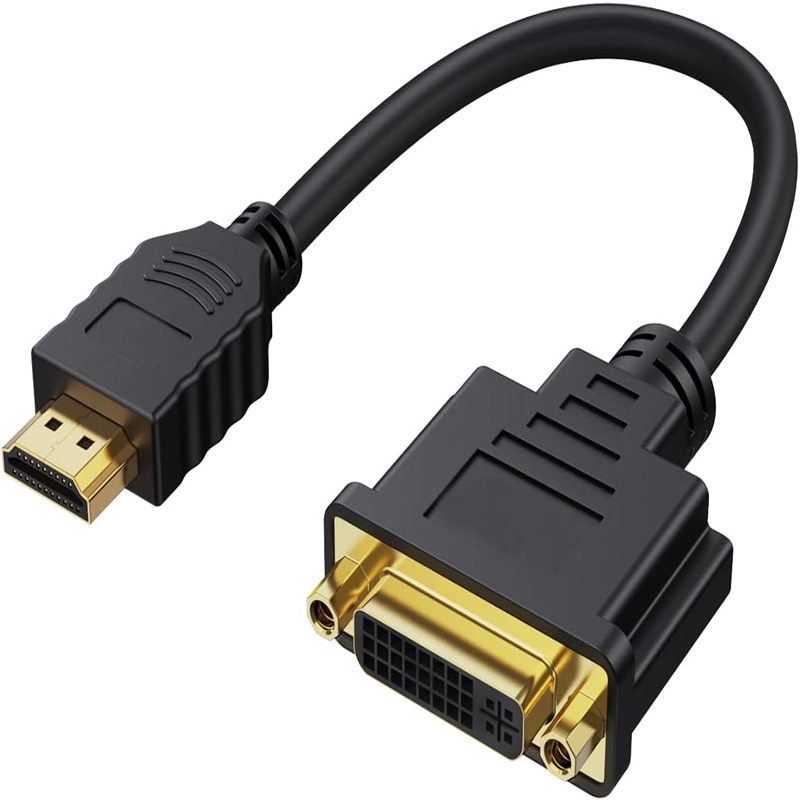

Yes, you can use a DVI-to-HDMI adapter or cable, but since DVI doesn’t carry audio, you’ll need a separate audio connection.
Single-link DVI: Up to 1920×1200 at 60Hz.
Dual-link DVI: Up to 2560×1600 at 60Hz (or 1080p at 144Hz for gaming).
No, DVI does not support 4K resolution. For 4K, use HDMI 2.0+, DisplayPort, or newer standards.
Yes, dual-link DVI supports high refresh rates (up to 144Hz at 1080p), making it suitable for gaming if your monitor has a DVI port.
Possible reasons:
Loose or damaged cable.
Wrong DVI type (e.g., using DVI-D with an analog display).
Faulty port on the GPU/monitor.
