1.Introduction
In an era where energy costs are rising and environmental sustainability is a global priority, understanding the nuances of electrical efficiency has never been more critical. For manufacturers, distributors, and users of cables, power adapters, and electrical systems, one metric stands out as a cornerstone of energy optimization: power factor. But why is power factor important when measuring efficiency? How does it impact performance, costs, and compliance in power systems?
This in-depth guide explores the relationship between power factor and efficiency, focusing on its relevance to cables, power adapters, and industrial applications. By the end, you’ll understand how optimizing power factor can reduce energy waste, lower operational costs, and improve the longevity of electrical devices—all while ensuring compliance with international standards.
2.What Is Power Factor? A Technical Primer

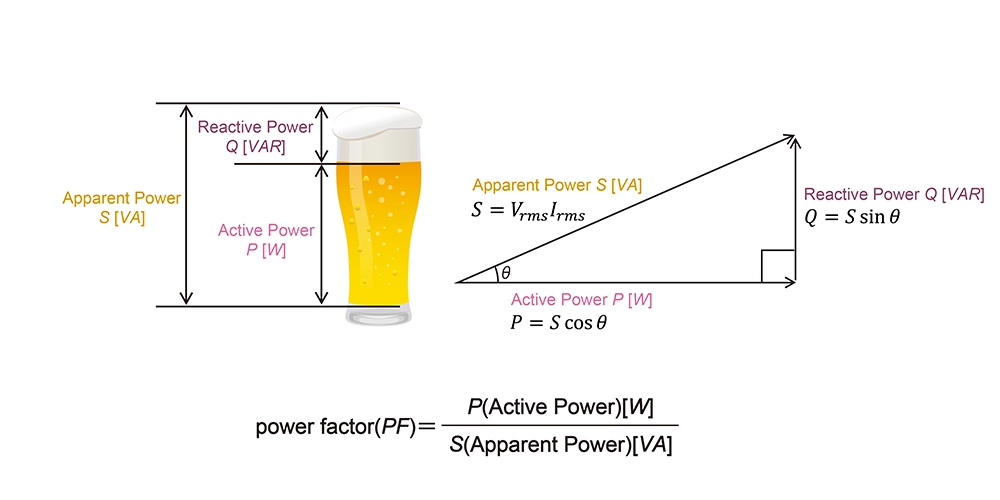

Power factor (PF) is a dimensionless metric (ranging from 0 to 1) that quantifies how effectively electrical power is converted into useful work. It represents the ratio of real power (measured in watts, W) to apparent power (measured in volt-amperes, VA):
Power Factor (PF)=Real Power (W)/Apparent Power (VA)
Real Power (W): The energy consumed to perform actual work (e.g., heating, lighting, mechanical motion).
Reactive Power (VAR): The energy stored and returned by inductive/capacitive components (e.g., motors, transformers).
Apparent Power (VA): The vector sum of real and reactive power.
A power factor of 1 (or "unity") means all supplied power is used productively. However, most industrial systems operate at a lagging PF (e.g., 0.7–0.9) due to inductive loads like motors and transformers.
3.Why Power Factor Matters in Efficiency Measurement?
When evaluating the efficiency of cables, power adapters, or electrical systems, power factor plays a pivotal role. Here’s why:

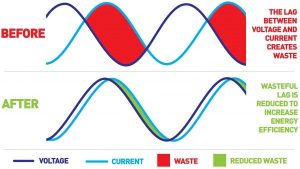

Low power factor increases apparent power demand, forcing utilities to supply more current to deliver the same real power. This leads to:
Higher energy losses in cables and transformers (Ploss=I2RPloss=I2R).
Increased electricity bills due to penalties for low PF (common in industrial tariffs).
Overloading of infrastructure, reducing the lifespan of components.
Example: A 10 kW motor with a PF of 0.7 draws 14.3 kVA of apparent power. Correcting PF to 0.95 reduces apparent power to 10.5 kVA—saving 27% in line losses and lowering utility costs.
Low PF limits the usable capacity of electrical systems. For instance:
A 100 kVA transformer operating at PF 0.7 can only deliver 70 kW of real power.
Improving PF to 0.9 increases usable capacity to 90 kW, delaying costly infrastructure upgrades.
Modern regulations (e.g., 80 PLUS®, ErP Directive, IEC 61000-3-2) mandate minimum power factor and efficiency thresholds for power supplies and adapters. Non-compliance risks fines, market restrictions, and reputational damage.
Cables and adapters must handle higher currents under low PF conditions, necessitating thicker conductors and robust thermal management. Optimizing PF reduces component stress, enabling compact, cost-effective designs.
4.Power Factor in Cables and Power Adapters
Cables suffer resistive losses proportional to the square of the current (I2RI2R). Low PF increases current flow, exacerbating losses. For example:
A 3-phase cable supplying 100 A at PF 0.8 loses 4.8 kW (assuming R=0.05ΩR=0.05Ω).
At PF 0.95, losses drop to 3.4 kW—saving 29% in wasted energy.
Modern adapters use SMPS technology, which inherently improves PF compared to linear supplies. However, without active power factor correction (PFC), SMPS units may still operate at PF 0.6–0.7. High-efficiency adapters with PFC circuits achieve PF >0.9, reducing harmonic distortion and improving grid compatibility.
5.Measuring and Correcting Power Factor
Passive PFC: Uses capacitors/inductors to offset reactive power (common in low-cost adapters).
Active PFC: Employs electronic circuits (e.g., boost converters) to dynamically adjust PF (PF >0.98 achievable).
IEC 61000-3-2: Limits harmonic currents in equipment.
ENERGY STAR®: Requires PF ≥0.9 for external power supplies.
DOE Level VI: Mandates minimum efficiency and PF thresholds.
Power Analyzers: Measure real, reactive, and apparent power.
Clamp Meters: Assess current harmonics and phase angles.
6.Practical Challenges and Solutions
Integrating PFC circuits increases adapter size and cost. However, advancements in semiconductor technology (e.g., GaN FETs) enable compact, high-efficiency designs.
Low PF increases heat generation in cables and adapters. Solutions include:
Using high-temperature-rated insulation (e.g., XLPE).
Incorporating thermal sensors and cooling systems.
Adapters must comply with regional PF regulations (e.g., EU vs. Asia). Modular designs allow customization for target markets.
7.Case Study: PF Optimization in Industrial Power Adapters
A leading manufacturer reduced PF from 0.65 to 0.93 by implementing active PFC in their 100W adapters. Results included:
18% reduction in energy losses.
Compliance with ENERGY STAR and EU ErP standards.
15% lower operational costs for end-users.
8.Conclusion
Power factor is not just a technical metric—it’s a gateway to energy efficiency, cost savings, and regulatory compliance. For businesses involved in cables, power adapters, and electrical systems, prioritizing PF optimization translates to competitive advantages, from reduced operational expenses to enhanced product reliability.
By integrating advanced PFC technologies, adhering to international standards, and educating stakeholders, companies can position themselves as leaders in the push toward a sustainable energy future.
9.FAQS
Q1: Does power factor affect household electricity bills?
In residential settings, utilities often bill only real power (W). However, industries pay for apparent power (kVA), making PF correction essential.
Q2: Can capacitors alone fix low power factor?
Capacitors offset inductive loads but may cause overvoltage. Active PFC is more effective for dynamic loads.
Q3: How does PF relate to Total Harmonic Distortion (THD)?
High THD (e.g., from non-linear loads) degrades PF. Active PFC reduces both THD and reactive power.
